Glass Wool Pipe Insulation with Aluminium Cloth Facing for Outdoor Applications

Informasi Dasar

Tempat asal:	Cina
Nama merek:	FANRYN

Kemasan rincian:	Kantong plastik
Waktu pengiriman:	15 hari kerja
Syarat-syarat pembayaran:	T/t

Harga terbaik Hubungi sekarang

Informasi Detail

Sertifikasi:	Astm, ul, ce, dan greenguard	Konduktivitas termal:	0,035-0,044 W/mK
Kepadatan:	10-50 kg/m3	Kisaran suhu:	-50°C hingga 650°C
Penyerapan suara:	Hingga 0,95 NRC	Jenis isolasi:	Isolasi Termal
Resistensi kimia:	Resisten terhadap kebanyakan bahan kimia	Negara asal:	Berbeda-beda menurut produsen
Resistensi kelembaban:	Non-hygroscopic	Metode instalasi:	Longgar-longgar, batts, atau gulungan
Bahan:	Wol mineral	Formulir yang Tersedia:	Papan, selimut, dan longgar
Resistensi Kebakaran:	Kelas A1	Aplikasi:	Atap, dinding, lantai, dan sistem HVAC
Keberlanjutan lingkungan:	Terbuat dari bahan alami dan daur ulang
Menyoroti:	glass wool pipe insulation , aluminium cloth pipe insulation , outdoor mineral wool pipe

Deskripsi Produk

Product introduction of the glass wool pipe

Engineered for urban heat supply systems, these glass wool pipes ensure efficient thermal retention in hot water and steam distribution networks. Their high-density composition (48–80 kg/m³) and customizable thickness (25–90 mm) provide optimal heat resistance, reducing energy waste and operational costs. The pipes are also compatible with outdoor installations when equipped with waterproof coatings.

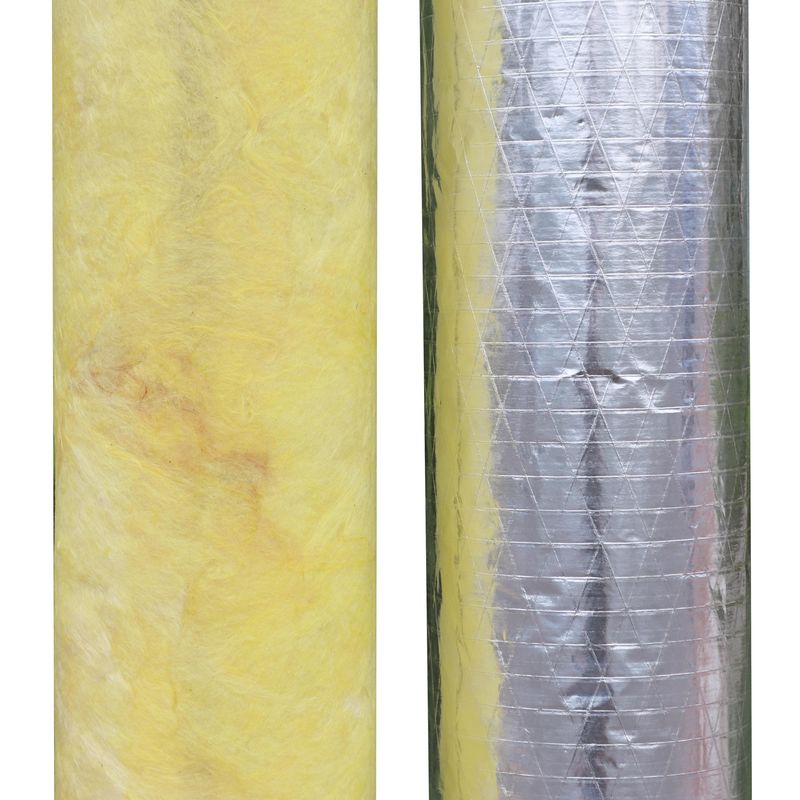

Glass Wool Pipe Insulation with Aluminium Cloth Facing for Outdoor Applications 0

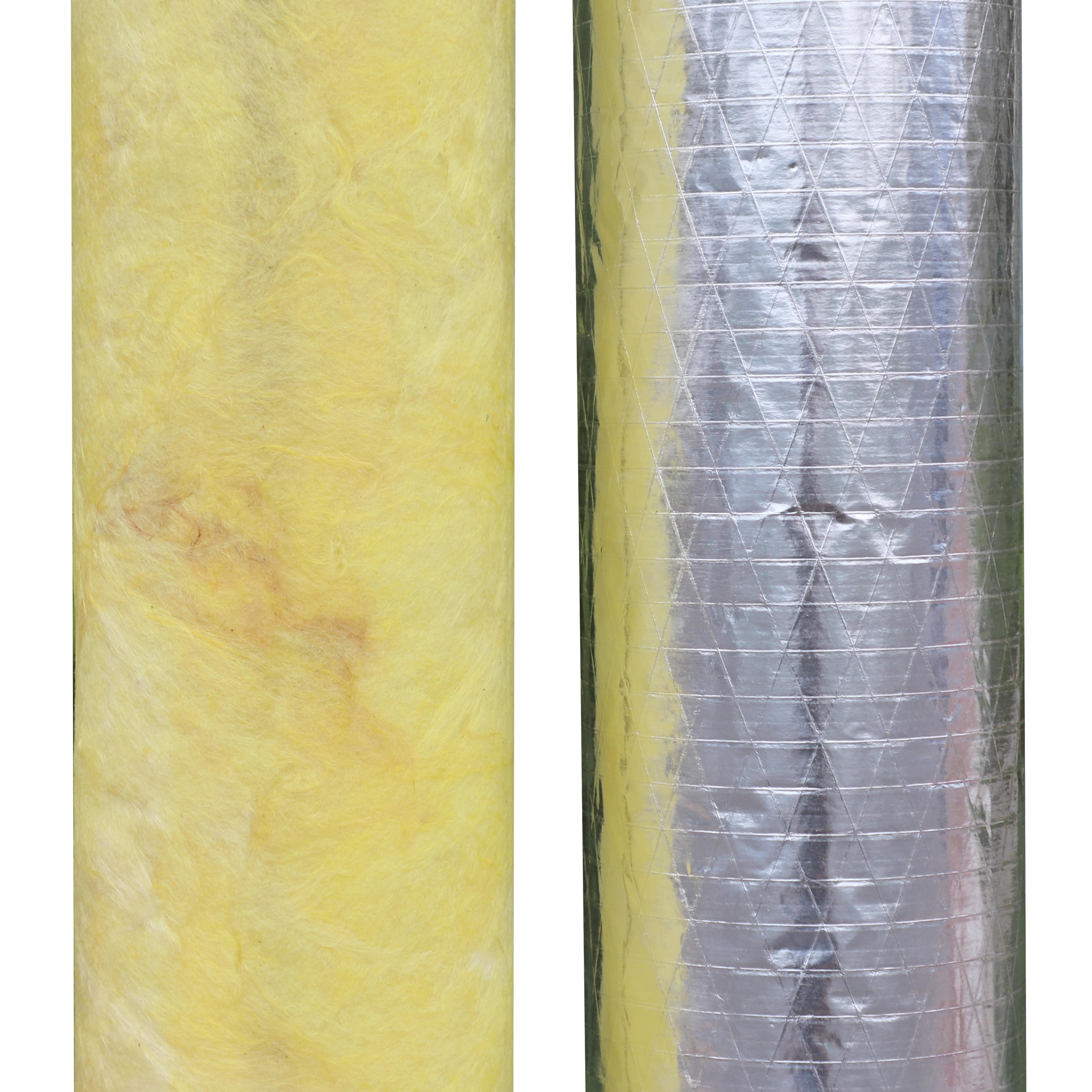

Glass Wool Pipe Insulation with Aluminium Cloth Facing for Outdoor Applications 1

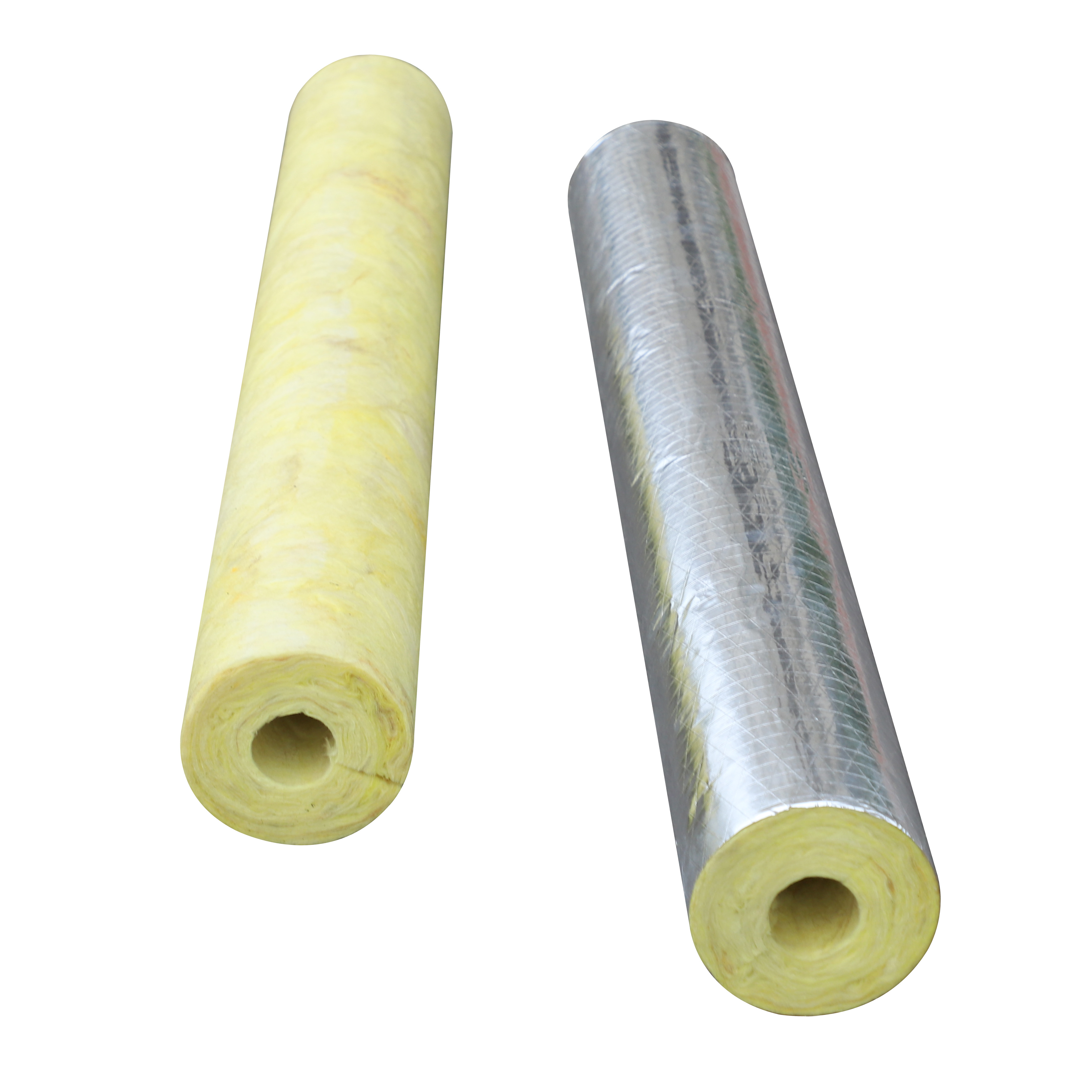

Glass Wool Pipe Insulation with Aluminium Cloth Facing for Outdoor Applications 2

Product parameter of the glass wool Pipe

Recommend Thickness List(mm)

Pipeline System Type	The Thickness of glasswood pipe shell applied in different pipeline(mm)
Pipeline System Type	Liquid Temperature Range℃	Diameter of Branches Under 50mm	Under 25mm	32-50	64-100	125-150	Above 200mm
Air System Steaming and Water System High Temperature/ High Pressure System	152-238	40	64	64	75	89	89
Medium Temperature/ Medium Pressure System	122-151	40	50	64	64	75	75
low Temperature/ low Pressure System	94-121	25	40	40	50	50	50
low Temperature System	49-93	13	25	25	40	40	40
Steaming Condensator of Watering System	Any Temperature	25	25	40	50	50	50

Equivalent Thickness of Surface Cooling Prevention

Environment Temperature	Relative Humidity	System Working Temperature
Environment Temperature	Relative Humidity	2℃	7℃	13℃
38℃	50%-60%	25	25	25
	70%	40	30	30
	80%	75	60	50
	85%	100	90	75
32℃	50%-60%	25	25	25
	70%	25	25	25
	80%	50	50	40
	85%	80	75	60
27℃	50%-70%	25	25	25
	80%	50	40	30
	85%	75	65	50
21℃	50%-70%	25	25	25
	80%	50	40	30
	85%	75	50	40

If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.

Product size of the glass wool pipe

Density(kg/m3)	Thickness(mm)	Length (mm)	Diameter (mm)
48-80	25-90	1000,1200	18-529

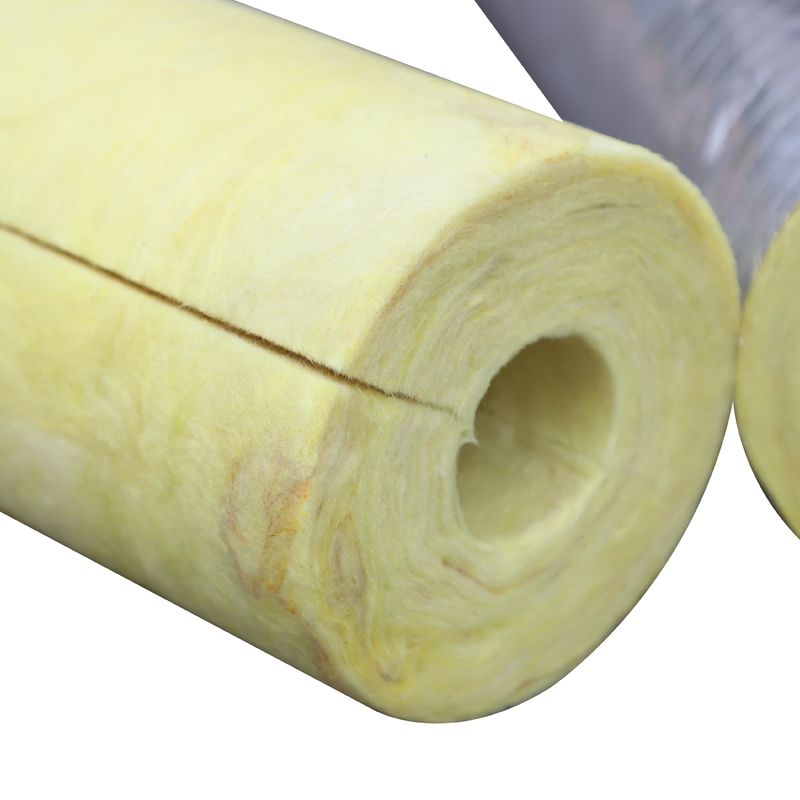

Glass Wool Pipe Insulation with Aluminium Cloth Facing for Outdoor Applications 3

Facing For glass wool Pipe

Foil-Scrim-Kraft Facing

Alum Glass Cloth Facing

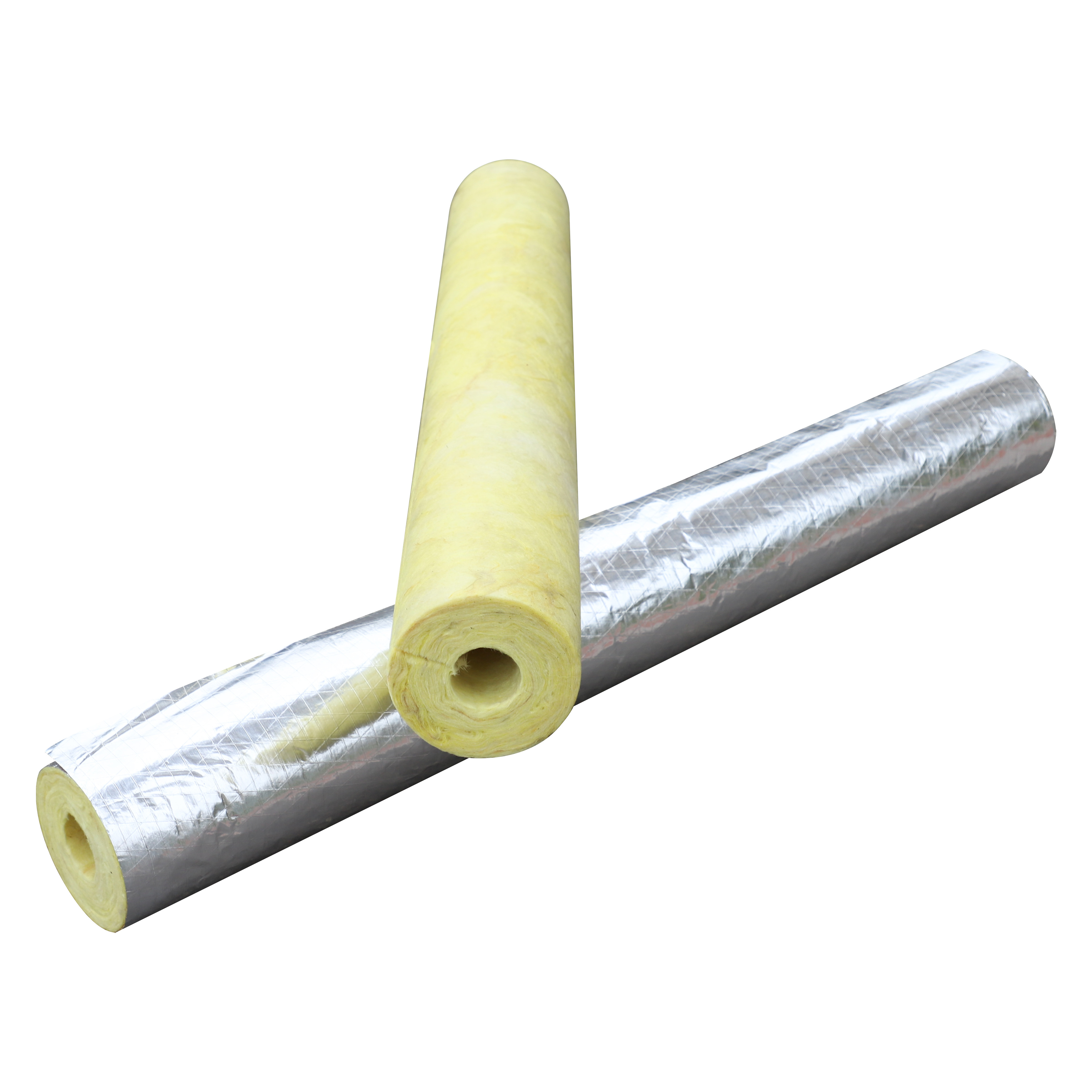

Glass Wool Pipe Insulation with Aluminium Cloth Facing for Outdoor Applications 4

Glass Wool Pipe Insulation with Aluminium Cloth Facing for Outdoor Applications 5

Product application

Packing

FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).

Q3: What is your lead time for one 40HC container order?

A3: Usual 10-15 work days after placing order.

Q4:About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A4:The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
