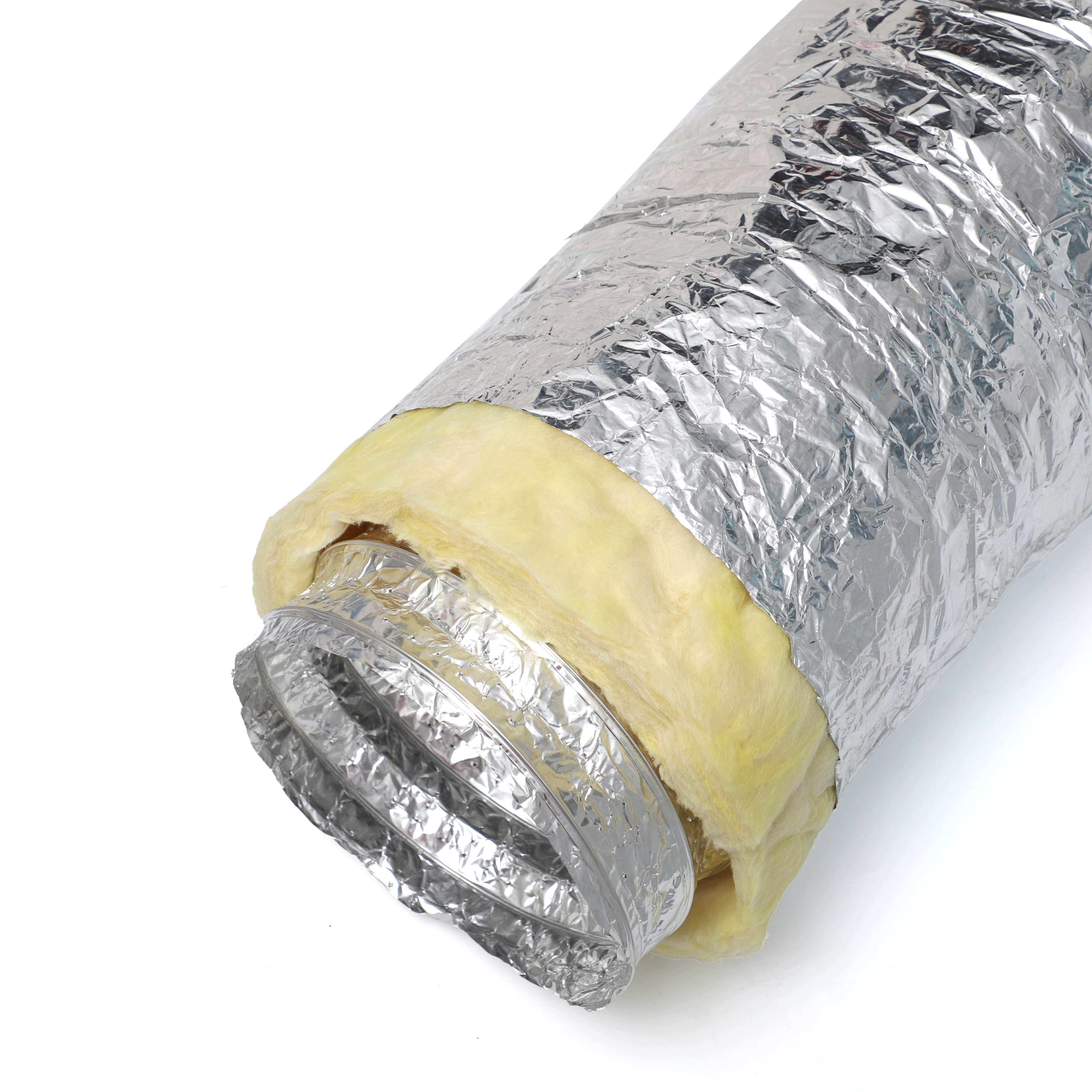

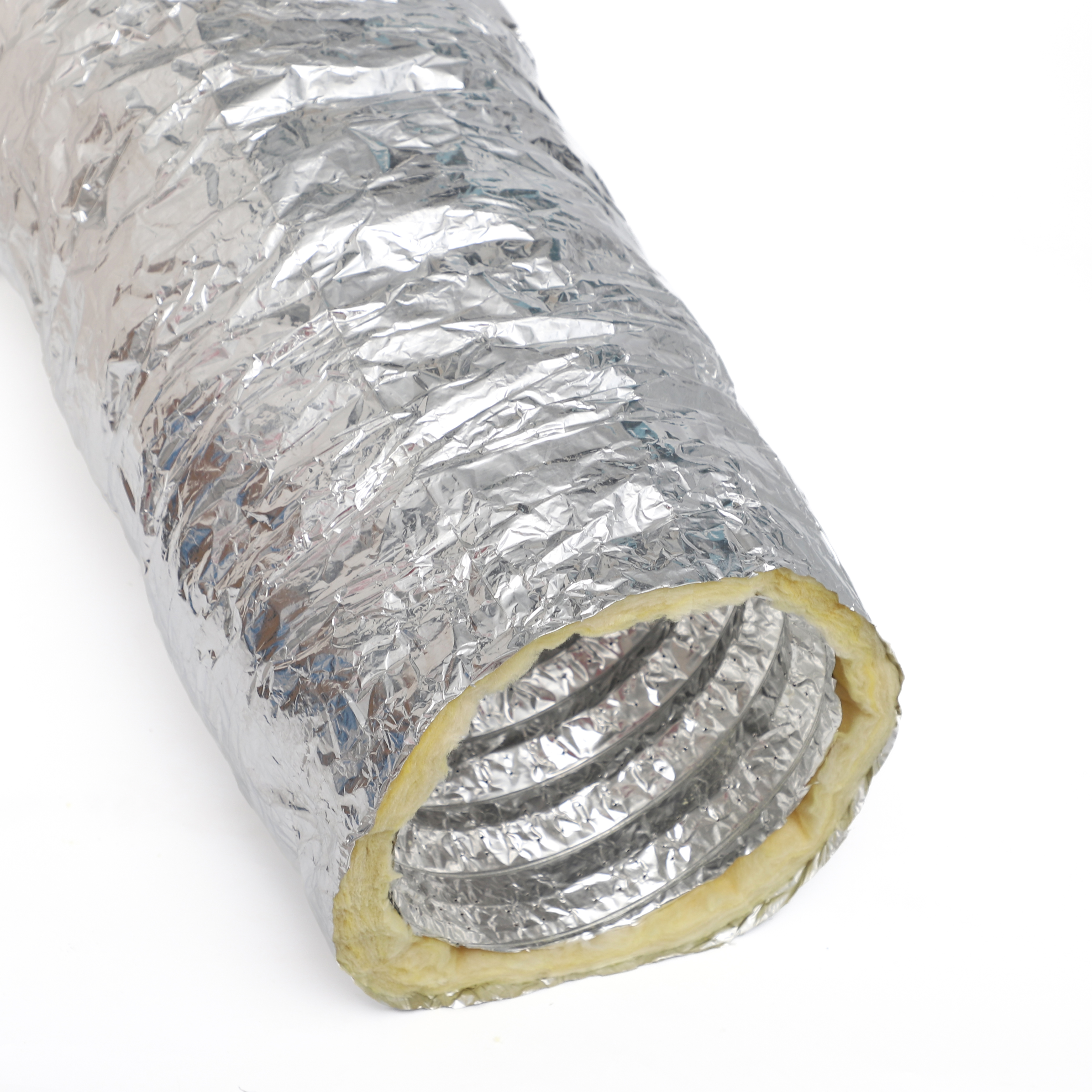

Custom Reinforced Insulated Flexible Duct Aluminum Air Duct with Temperature Range -30 to +250°C and Fiberglass Insulation 25-50mm

Custom Reinforced Insulated Flexible Duct Aluminum Air Duct with Temperature Range -30 to +250°C and Fiberglass Insulation 25-50mm
Custom Reinforced Insulated Flexible Duct Aluminum Air Duct with Temperature Range -30 to +250°C and Fiberglass Insulation 25-50mm Custom Reinforced Insulated Flexible Duct Aluminum Air Duct with Temperature Range -30 to +250°C and Fiberglass Insulation 25-50mm Custom Reinforced Insulated Flexible Duct Aluminum Air Duct with Temperature Range -30 to +250°C and Fiberglass Insulation 25-50mm Custom Reinforced Insulated Flexible Duct Aluminum Air Duct with Temperature Range -30 to +250°C and Fiberglass Insulation 25-50mm Custom Reinforced Insulated Flexible Duct Aluminum Air Duct with Temperature Range -30 to +250°C and Fiberglass Insulation 25-50mm
Informasi Dasar
Kuantitas min Order: 500
Harga: 0.1-15$
Kemasan rincian: Kantong plastik+karton
Waktu pengiriman: 7-10 hari
Syarat-syarat pembayaran: T/t
Menyediakan kemampuan: 10000 PC
Harga terbaik Hubungi sekarang
Informasi Detail
Bahan: aluminium foil/hewan peliharaan/kaca wol/kawat Aplikasi: Ventilasi
Membentuk: Berbentuk Bulat Kisaran Suhu: -30 - +250 derajat Celcius
Kisaran Diameter: 80mm - 610mm Warna: Perak
Radius Lentur: 0,54*D+25mm Ketebalan isolasi fiberglass: 25-50mm
Kepadatan isolasi fiberglass: 16-32kg/m3
Menyoroti:

insulated flexible aluminum foil duct

,

custom reinforced coat air duct

,

thermal insulation flexible aluminum duct

Deskripsi Produk

Custom Reinforced Coat Insulated Flexible Aluminum Foil Air Duct
Factory air conditioning and HVAC system insulated duct for efficient thermal management.
Insulated flexible aluminum duct cross-section diagram Insulated flexible aluminum duct product view
Technical Specifications
PropertyValue
Diameter Range80 ~ 610mm (3"~ 24")
Temperature Range-30 ~ +250 °C
Velocity of Air Flow (Max.)30 m/s
Working Pressure2500 Pa/3000 Pa
Bending Radius0.54*D+25mm
Thickness of Fiberglass Insulation25-50mm
Density of Fiberglass Insulation16~32kg/m³
Standard Length5 ~ 10m
Flexible duct installation example Duct connection detail Duct bending demonstration Duct insulation layer close-up Duct application in HVAC system
Product Features and Applications

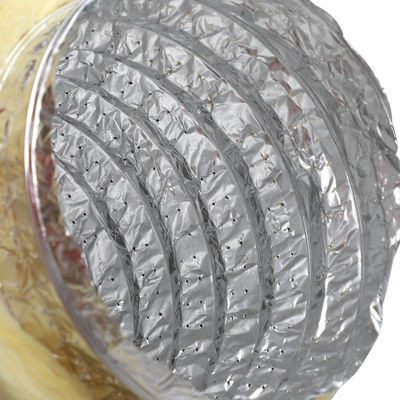

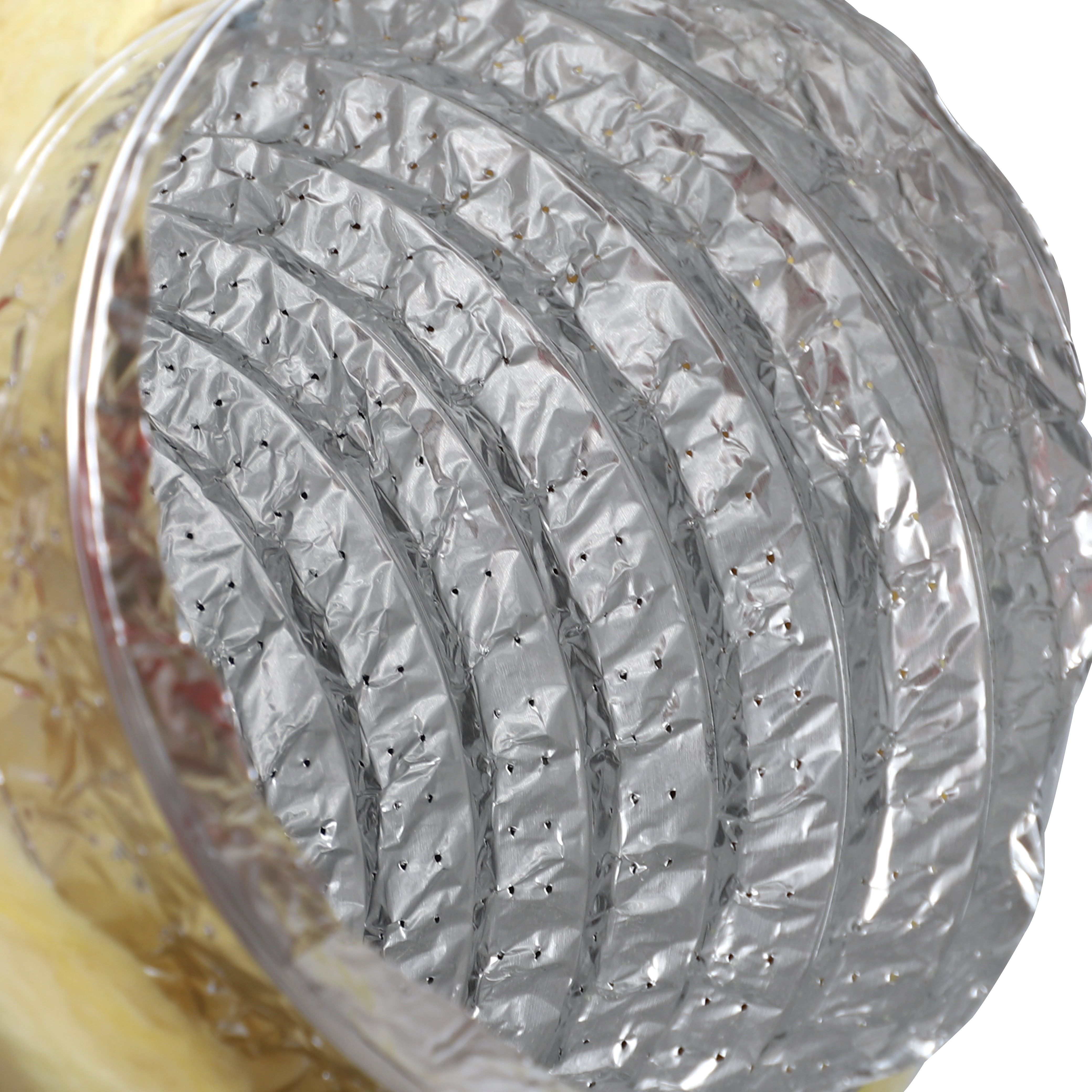

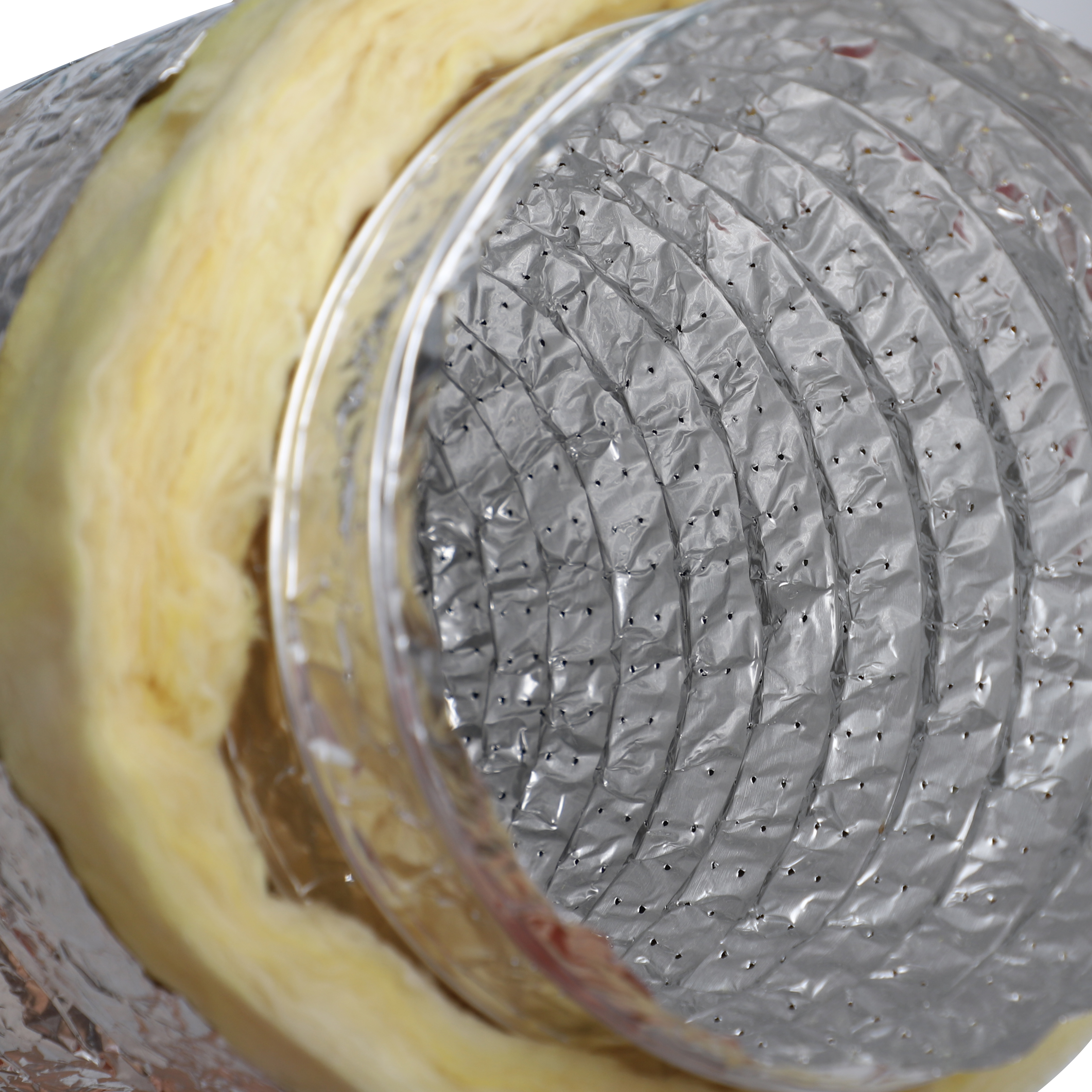

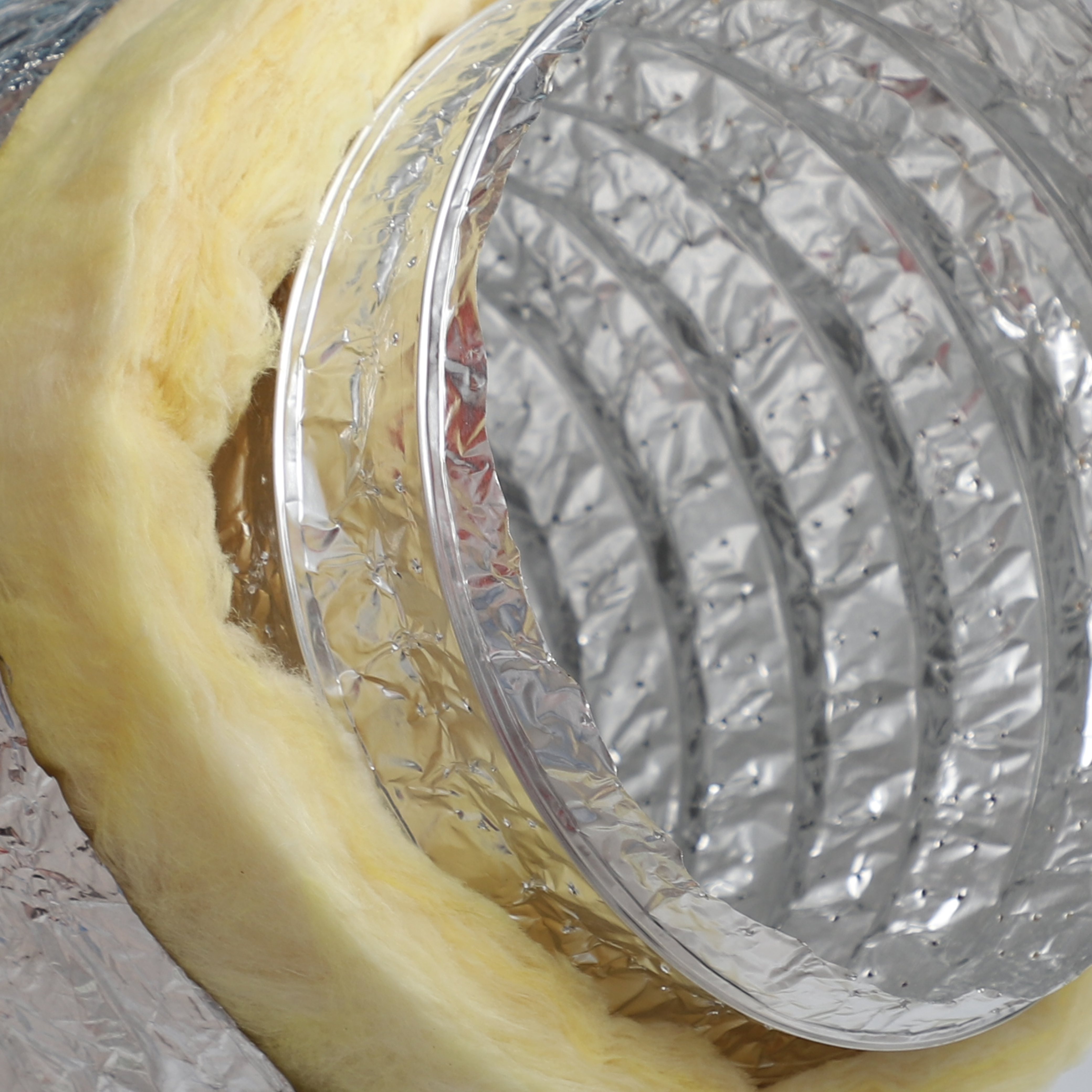

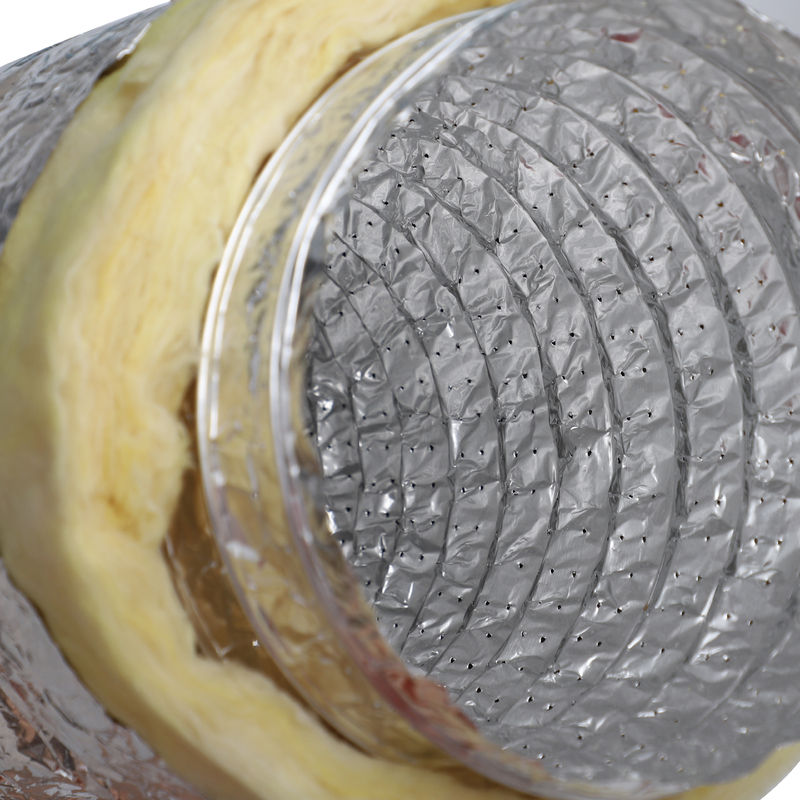

  • Slightly perforated inner core covered by fiberglass insulation and aluminum/polyester laminated outer jacket
  • Excellent fire resistance and acoustic performance with superior thermal insulation and flexibility
  • Effectively reduces heat and cooling loss while preventing condensation
Packaging
Duct packaging diagram Duct packaged for shipping
Click here to see all our products
Duct manufacturing process Quality control inspection Finished duct product showcase
Frequently Asked Questions
Can you serve free samples and how can I get them?
Yes, as one of the largest ventilation duct products manufacturers in China, we are able to offer free samples for your testing.
Can this be used for a range hood exhaust?
Suitable for use with heating, ventilation and air conditioning systems.
Can the duct be cut to length as needed?
Yes, absolutely.
Where can the duct be used for?
Ideal for heating and A/C systems and various ventilation applications.
What are the benefits of your flexible ducts?
Made of high-quality flame-retardant aluminum, they offer excellent flexibility and easy installation.
Are you a manufacturer?
Yes, we are a professional manufacturer with several years of manufacturing and overseas sales experience, cooperating with distributors worldwide.
