Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes.

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes.
Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes.
Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes.
Informasi Dasar
Tempat asal: Cina
Nama merek: FANRYN
Sertifikasi: CE, ASTM E84, EN 13501 12018
Nomor model: Pipa Glasswool
Kuantitas min Order: 1*40HQ per spesifikasi
Harga: 0.5-5$/m2
Kemasan rincian: kantong plastik atau karton
Waktu pengiriman: 15 Hari
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 1*40HQ 15 hari
Harga terbaik Hubungi sekarang
Informasi Detail
konduktivitas termal: >=0,4 W/m·K Dampak lingkungan: Dapat didaur ulang, Ramah Lingkungan
tahan api: Tidak mudah terbakar, Kelas A1 penyerapan air: <1%
Nama Produk: Panel langit-langit fiberglass Aplikasi: ruang kelas, kantor, pusat perbelanjaan, dll.
Bahan: Benang halus dr kaca NRC: 0,8-0,9
Menyoroti:

glass wool pipe insulation

,

industrial cold-keeping pipe insulation

,

building materials heat insulation pipe

Deskripsi Produk

Products Description

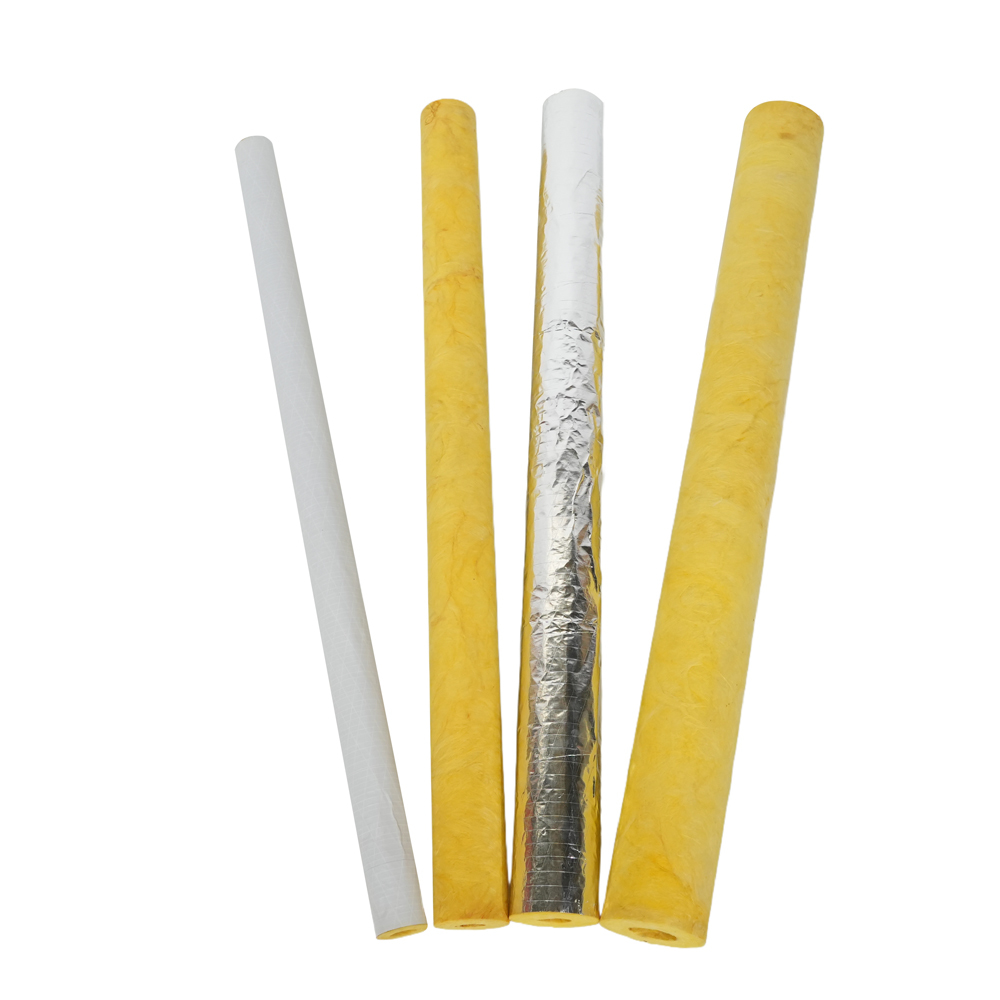

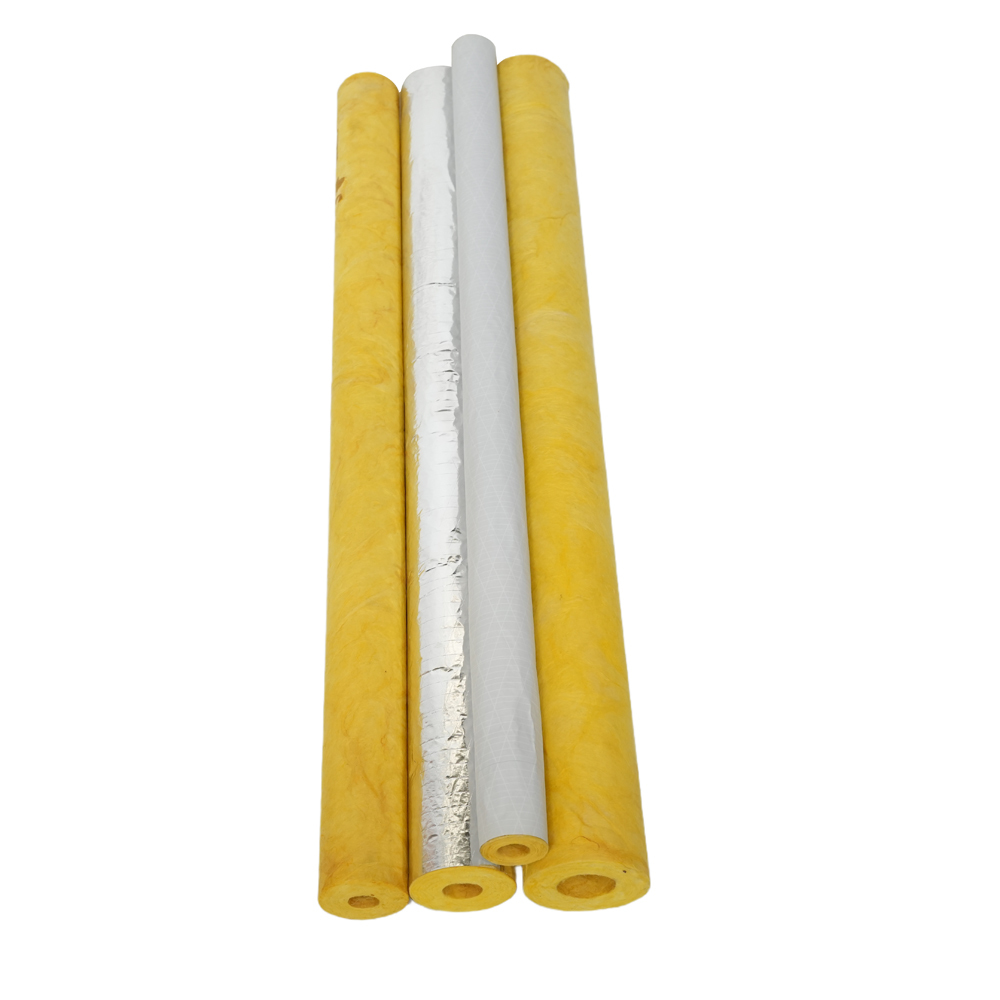

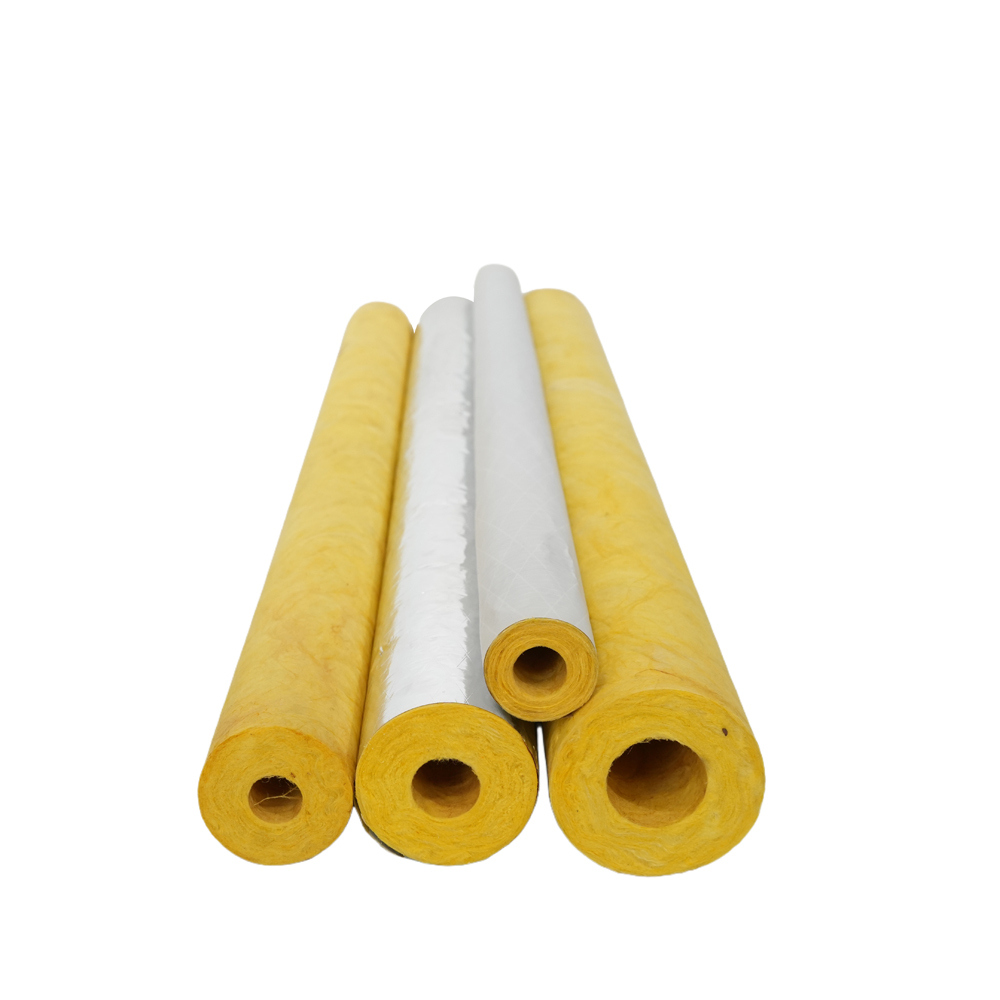

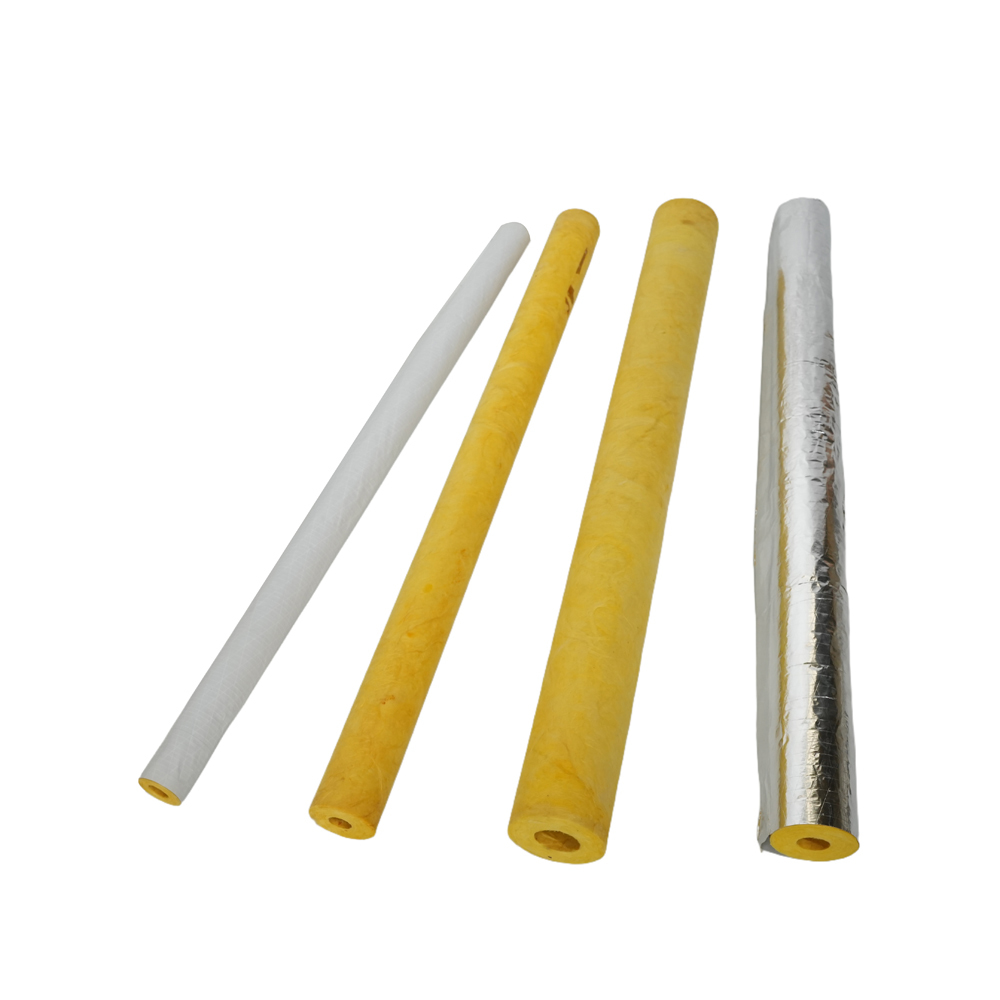

Glass wool pipe sections are a cost-effective insulating material, known for being lightweight and easy to install. They provide excellent thermal and acoustic insulation across a wide temperature range, from -85℃ to 454℃. As a result, these pipe sections are widely used for insulating ventilation ducts, industrial and civil heating systems, as well as various heating and cooling pipelines.

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 0

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 1

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 2




Product feature of the glasswool pipe

  1. Wide-Temp Performance
    Excellent insulation from -85°C to 454°C for both heating and cooling lines.

  2. Noise Reduction
    Absorbs sound from airflow and vibration, reducing system noise.

  3. Easy & Fast Installation
    Lightweight pre-formed sections cut and fit quickly, saving time and labor.

  4. Moisture Resistant
    Hydrophobic treatment prevents condensation and maintains performance.

  5. Safe & Durable
    Non-corrosive, fire-resistant (Class A), and long-lasting.

  6. Cost-Effective for Multiple Uses
    Ideal for HVAC, industrial, and domestic hot/cold water pipes.




Product Specifications

Density(kg/m3)

Thickness(mm)

Length (mm)

Diameter (mm)

48-80

25-90

1000,1200

18-529


Technical Data




Recommend Thickness List(mm)

Pipeline System Type

The Thickness of glasswood pipe shell applied in different pipeline(mm)

Liquid Temperature Range℃

Diameter of Branches Under 50mm

Under 25mm

32-50

64-100

125-150

Above 200mm

Air System Steaming and Water System High Temperature/
High Pressure System

152-238

40

64

64

75

89

89

Medium Temperature/
Medium Pressure System

122-151

40

50

64

64

75

75

low Temperature/
low Pressure System

94-121

25

40

40

50

50

50

low Temperature System

49-93

13

25

25

40

40

40

Steaming Condensator of Watering System

Any Temperature

25

25

40

50

50

50

Equivalent Thickness of Surface Cooling Prevention

Environment
Temperature

Relative Humidity

System Working Temperature

2℃

7℃

13℃

38℃

50%-60%

25

25

25

70%

40

30

30

80%

75

60

50

85%

100

90

75

32℃

50%-60%

25

25

25

70%

25

25

25

80%

50

50

40

85%

80

75

60

27℃

50%-70%

25

25

25

80%

50

40

30

85%

75

65

50

21℃

50%-70%

25

25

25

80%

50

40

30

85%

75

50

40

If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.



Product application

Pipe Insulation

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 3

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 4

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 5

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 6



Main Facing:

Foil-Scrim-Kraft Facing

Alum Glass Cloth Facing

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 7





Production packing of the glass wool pipe

Carton or plastic bag

Note: OEM is acceptable

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 8

Special Glass Wool Pipe for Heat Insulation of Building Materials Pipeline /industrial Cold-keeping Glass Wool Pipes. 9











Label:

Isolasi tabung serat kaca,

Isolasi pipa serat,

Isolasi serat kaca untuk pipa air
