Informasi Detail

Ketebalan:	25-100 mm	Permeabilitas uap:	Tinggi
Ketahanan suhu:	-270°C hingga 700°C	Kepadatan:	40-200kg/m³
Aplikasi:	Insulasi bangunan, sistem HVAC, peralatan industri	Metode instalasi:	Pemasangan mekanis atau ikatan perekat
Koefisien penyerapan suara:	0,85	Dampak lingkungan:	Dapat didaur ulang dan ramah lingkungan
Ukuran:	Bervariasi (misalnya, papan 600x1200 mm)	Penyerapan air:	<1%
Bahan:	Wol Mineral	Nama Produk:	Wol Mineral Isolasi Termal
Tahan api:	Tidak mudah terbakar, Kelas A1	Kekuatan kompresi:	≥10 kPa
Konduktivitas termal:	0,035 W/m·K

Deskripsi Produk

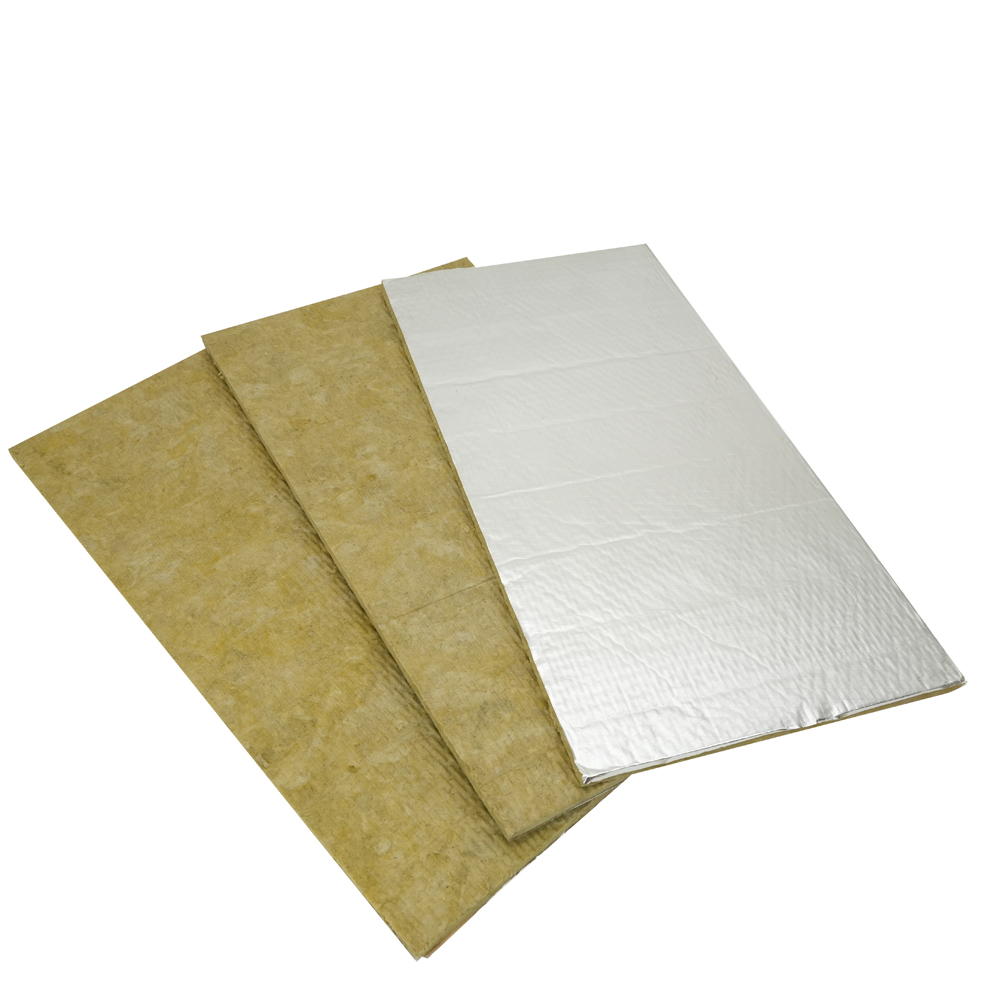

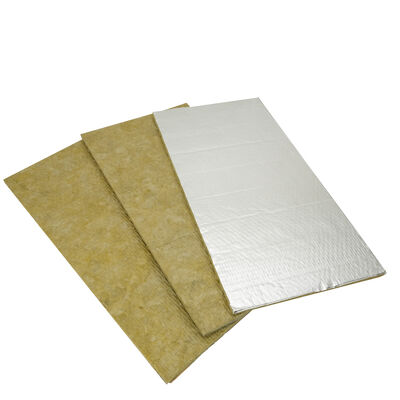

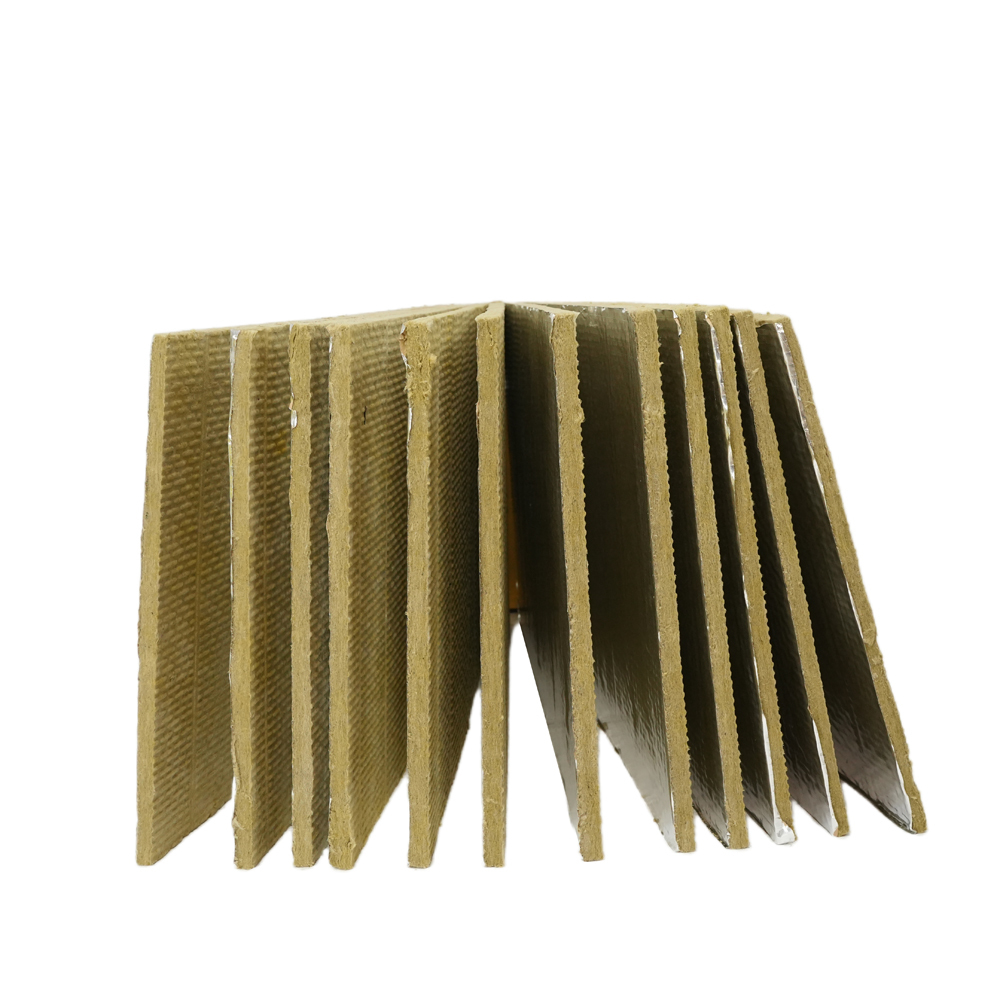

FANRYN Rock Wool Board: Premium Thermal & Acoustic Insulation

Product Overview

FANRYN Rock Wool Board is a high-performance insulation material manufactured from natural basalt and limestone. Through an advanced production process involving melting at temperatures exceeding 1450°C and fiberization, we create an inorganic, non-combustible board that delivers exceptional thermal insulation, fire safety, and acoustic control for diverse architectural and industrial applications.

Properties	Board	Standards
Density Tolerance	±10%	GB/T 19686-2005
Fire Performance	Non-Combustible	GB/T 5464-1999
	Reaction to fire Class A1	GB/T 8624-2006
Thermal Conductivity (W/mK, at70±5℃)	≤0.044	GB/T 10295
Fiber Diameter	7(+/-1)um	GB/T 5480. 4
Shot Content (shot size＞0.25mm)	≤12%
Moisture Content	≤0.5%
Organic Matter Content	≤4%
Melting Point	＞1000℃

Product	Board
Density (kg/m3)	40-200
Size :L x W (mm)	600X1200
Thickness (mm)	30-100

Product application of the Rock Wool Board

Insulation for external wall, roofing and floating floor
Insulation for big sized pipeline
ROCK WOOL board is widely used in public, commercial and residential buildings as well as industrial plants, for applications such as roofing, external wall, partition wall and floating floor to provide fire protection, thermal insulation, acoustic control and condensation control.

Production Facing of rock wool board

Wire Mesh

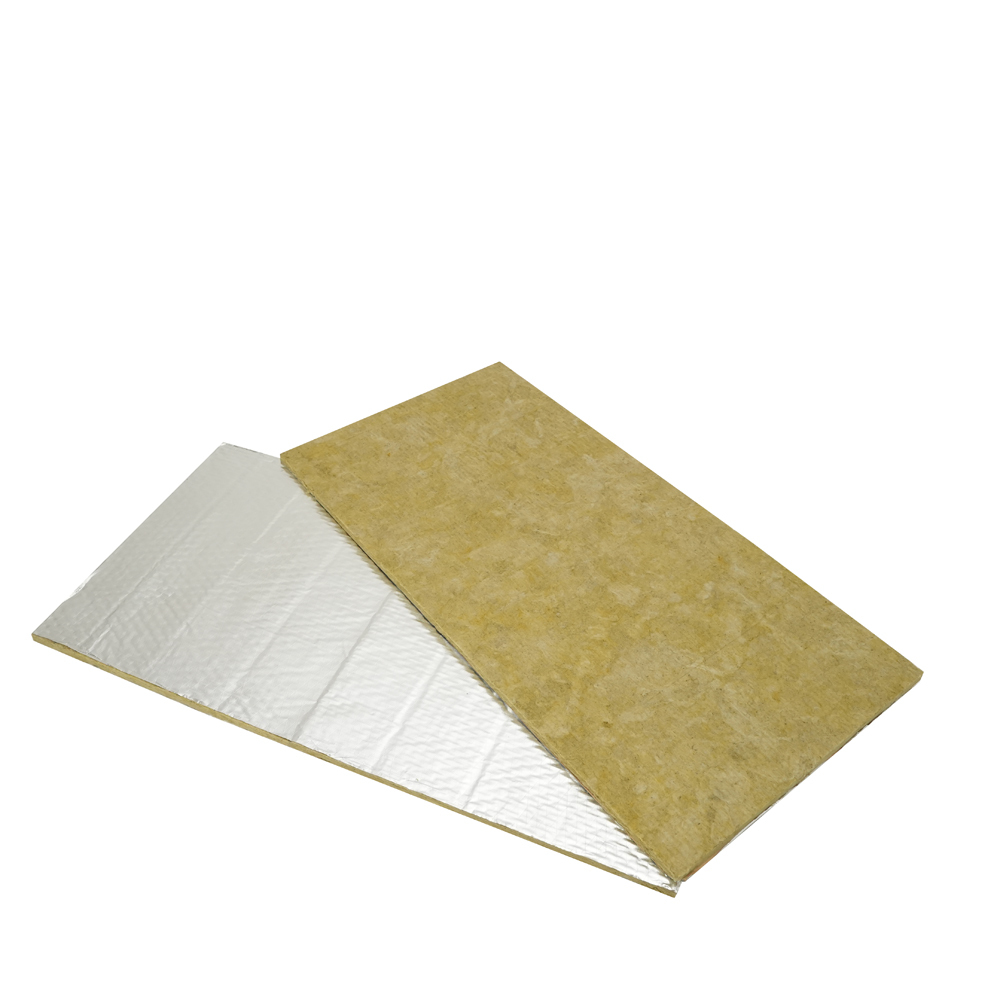

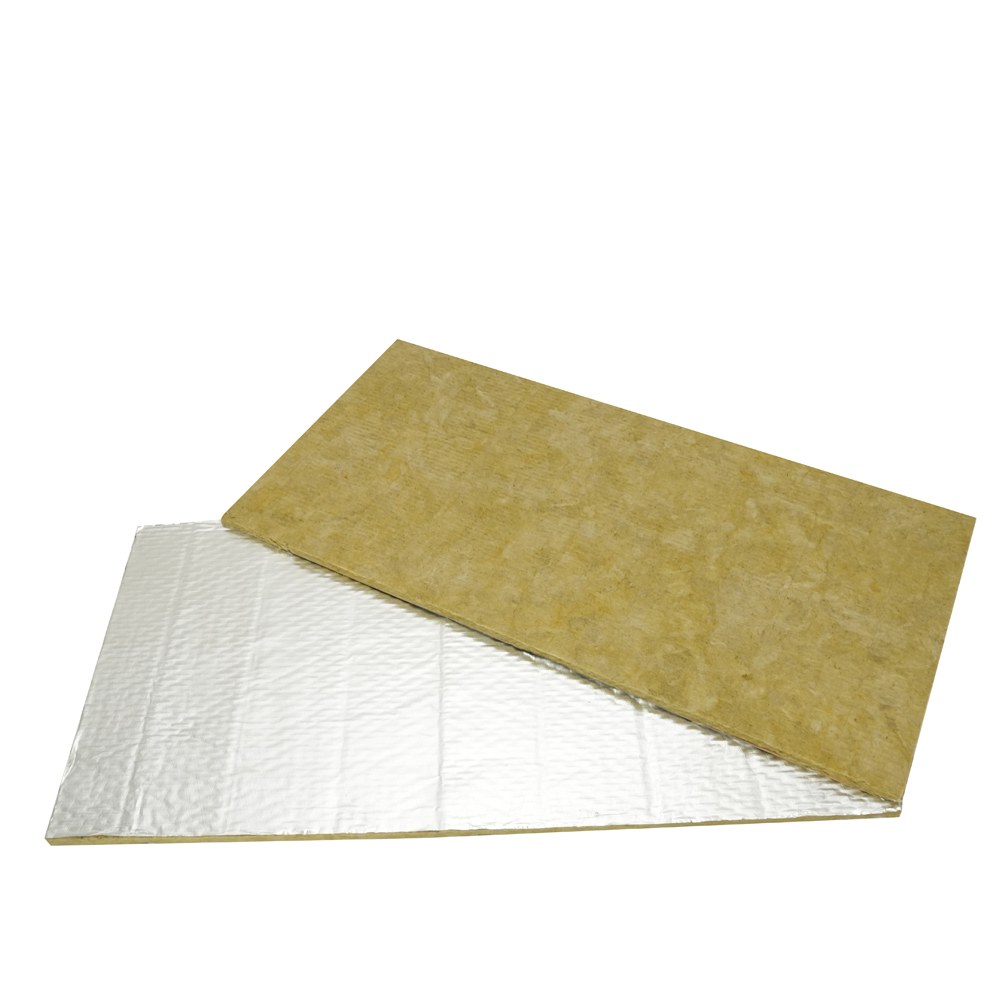

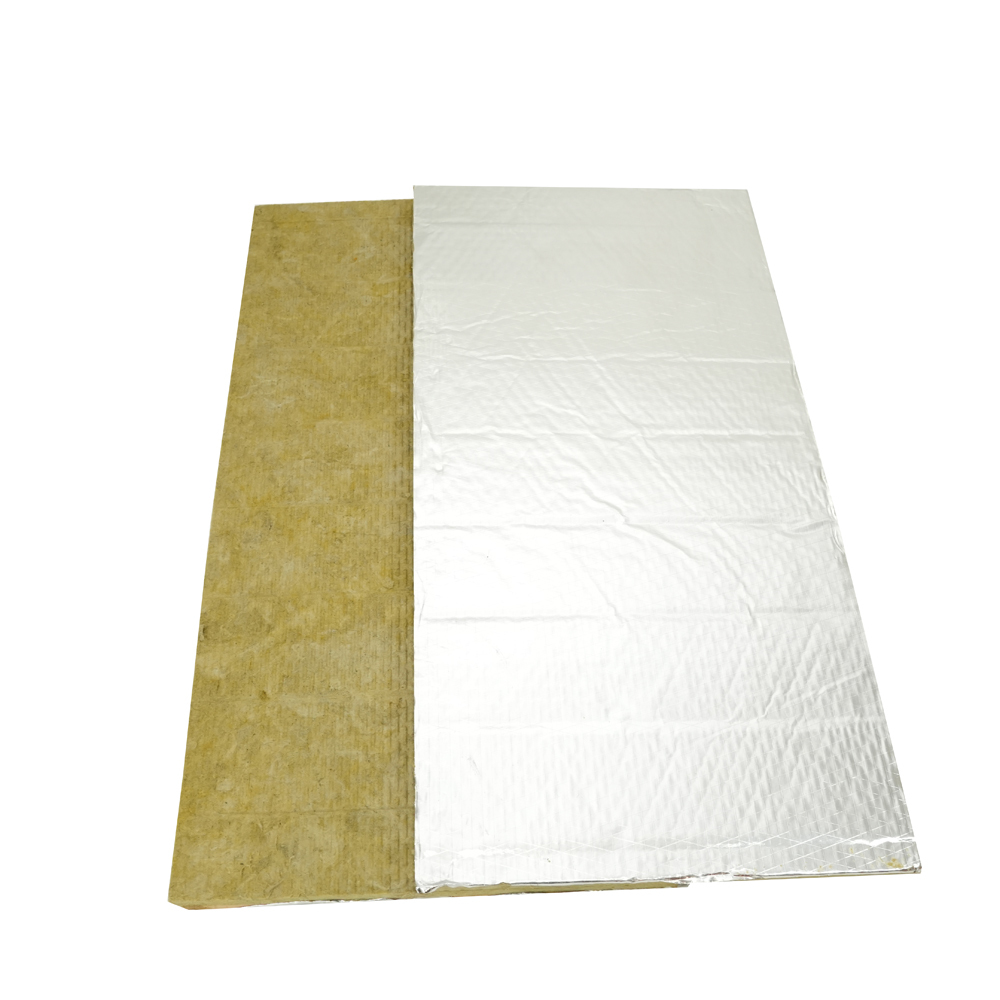

Aluminum foil facing
Fiberglas cloth

Production packing of the Rock Wool Board

plastic bag
PE shrinking bag

FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Plastic bag (Standard Export Packing).

Q3: What is your lead time for one 40HCcontainer order?

A3: Usual 15-20 work days after placing order

Q4: What is your advantage on rock wool board?

A4: Special product with special specification can be made to order.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.

Label:

Tempat asal:	Cina
Nama merek:	FANRYN

Kuantitas min Order:	satu 40HQ
Kemasan rincian:	Kantong plastik
Waktu pengiriman:	10 Hari Kerja
Syarat-syarat pembayaran:	T/T
