Rumah > Produk> Bulu Mineral Isolasi Panas> FANRYN Rock Wool Pipe - Non-combustible Class A1 Mineral Wool Pipe with 0.035 W/m·K Thermal Conductivity and -270°C to 700°C Temperature Resistance

FANRYN Rock Wool Pipe - Non-combustible Class A1 Mineral Wool Pipe with 0.035 W/m·K Thermal Conductivity and -270°C to 700°C Temperature Resistance

FANRYN Rock Wool Pipe - Non-combustible Class A1 Mineral Wool Pipe with 0.035 W/m·K Thermal Conductivity and -270°C to 700°C Temperature Resistance
FANRYN Rock Wool Pipe - Non-combustible Class A1 Mineral Wool Pipe with 0.035 W/m·K Thermal Conductivity and -270°C to 700°C Temperature Resistance FANRYN Rock Wool Pipe - Non-combustible Class A1 Mineral Wool Pipe with 0.035 W/m·K Thermal Conductivity and -270°C to 700°C Temperature Resistance FANRYN Rock Wool Pipe - Non-combustible Class A1 Mineral Wool Pipe with 0.035 W/m·K Thermal Conductivity and -270°C to 700°C Temperature Resistance FANRYN Rock Wool Pipe - Non-combustible Class A1 Mineral Wool Pipe with 0.035 W/m·K Thermal Conductivity and -270°C to 700°C Temperature Resistance FANRYN Rock Wool Pipe - Non-combustible Class A1 Mineral Wool Pipe with 0.035 W/m·K Thermal Conductivity and -270°C to 700°C Temperature Resistance
Informasi Dasar
Tempat asal: Cina
Nama merek: FANRYN
Kuantitas min Order: satu 40HQ
Kemasan rincian: kantong plastik
Waktu pengiriman: 10 hari kerja
Syarat-syarat pembayaran: T/T
Harga terbaik Hubungi sekarang
Informasi Detail
Kekuatan Kompresi: ≥10 kPa Tahan Suhu: -270°C hingga 700°C
Kepadatan: 40-200kg/m³ Ketebalan: 25mm hingga 150mm
Bahan: Wol Mineral Metode Instalasi: Pemasangan mekanis atau ikatan perekat
Penyerapan Air: <1% Tahan Api: Tidak mudah terbakar, Kelas A1
Koefisien penyerapan suara: 0,85 Ukuran: Biasanya 600mm x 1200mm
Warna: kuning atau coklat Dampak Lingkungan: Dapat didaur ulang dan ramah lingkungan
Konduktivitas termal: 0,035 W/m·K Aplikasi: Insulasi bangunan, isolasi industri, sistem HVAC
Menyoroti:

Non-combustible Class A1 Rock Wool Pipe

,

Thermal Conductivity 0.035 W/m·K Mineral Wool Pipe

,

Temperature Resistance -270°C to 700°C Basalt Wool Pipe

Deskripsi Produk

FANRYN Rock Wool Pipe - High-Performance Thermal Insulation for Industrial Applications
FANRYN Rock Wool Pipe is a rigid, lightweight insulation product specifically designed for pipe systems in industrial, commercial, and energy facilities. It is manufactured from natural volcanic rock (basalt) and limestone, which are melted at over 1450°C and spun into fine, high-quality fibers. These fibers are then bonded with thermosetting resin and formed into pipe sections that provide excellent thermal and acoustic insulation.

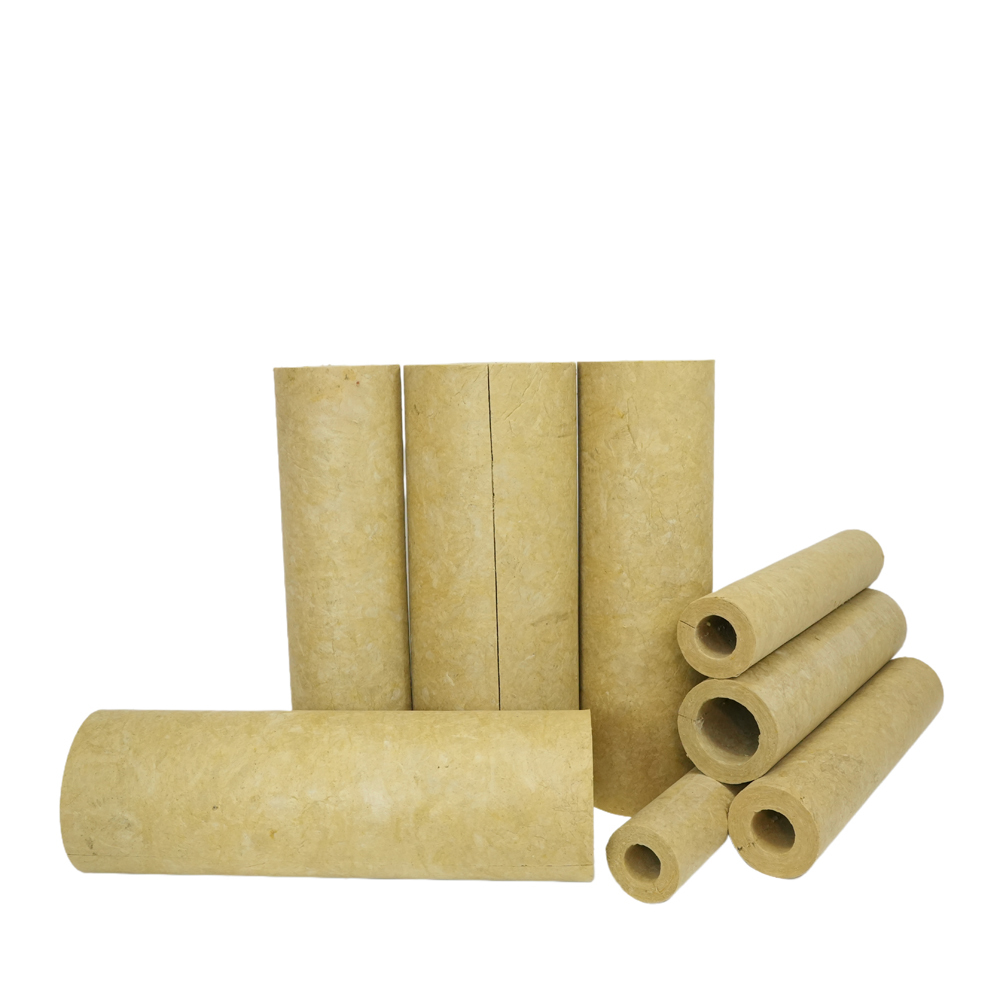

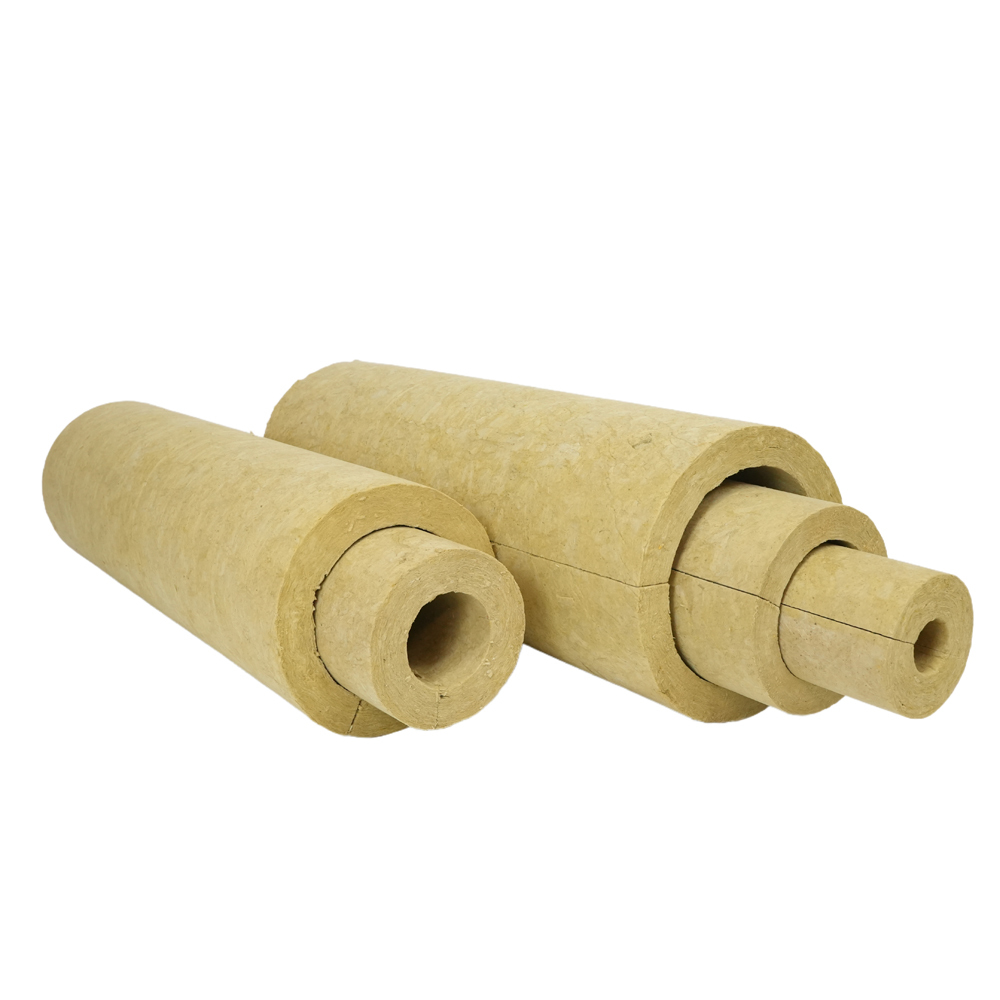

FANRYN Rock Wool Pipe - Non-combustible Class A1 Mineral Wool Pipe with 0.035 W/m·K Thermal Conductivity and -270°C to 700°C Temperature Resistance 0 FANRYN Rock Wool Pipe - Non-combustible Class A1 Mineral Wool Pipe with 0.035 W/m·K Thermal Conductivity and -270°C to 700°C Temperature Resistance 1
Physical & Technical Specifications
Property Value / Range Standard
Density Tolerance ±15% GB/T 19686-2005
Fire Performance Non-combustible / Class A1 GB/T 5464-1999
Thermal Conductivity (70°C) ≤ 0.044 W/mK GB/T 10295
Fiber Diameter 7 ± 1 µm GB/T 5480.4
Shot Content (>0.25mm) ≤ 12% –
Eccentricity (pipe shell) ≤ 5 mm –
Available Dimensions
Choose from a wide range of pipe diameters and insulation thicknesses to meet your project requirements.
  • Diameter Range: 22 mm (1/2") up to 610 mm (24")
  • Thickness Range: 25 mm to 150 mm
  • Length: Standard 1 m sections (custom lengths available upon request)
For full availability by diameter and thickness, please refer to our complete size chart.
Applications
  • Power plants
  • Oil refineries and petrochemical facilities
  • Industrial heating and cooling systems
  • HVAC ductwork
  • Marine and offshore pipe insulation
  • District heating networks
Ideal for both indoor and outdoor installations, with or without cladding.

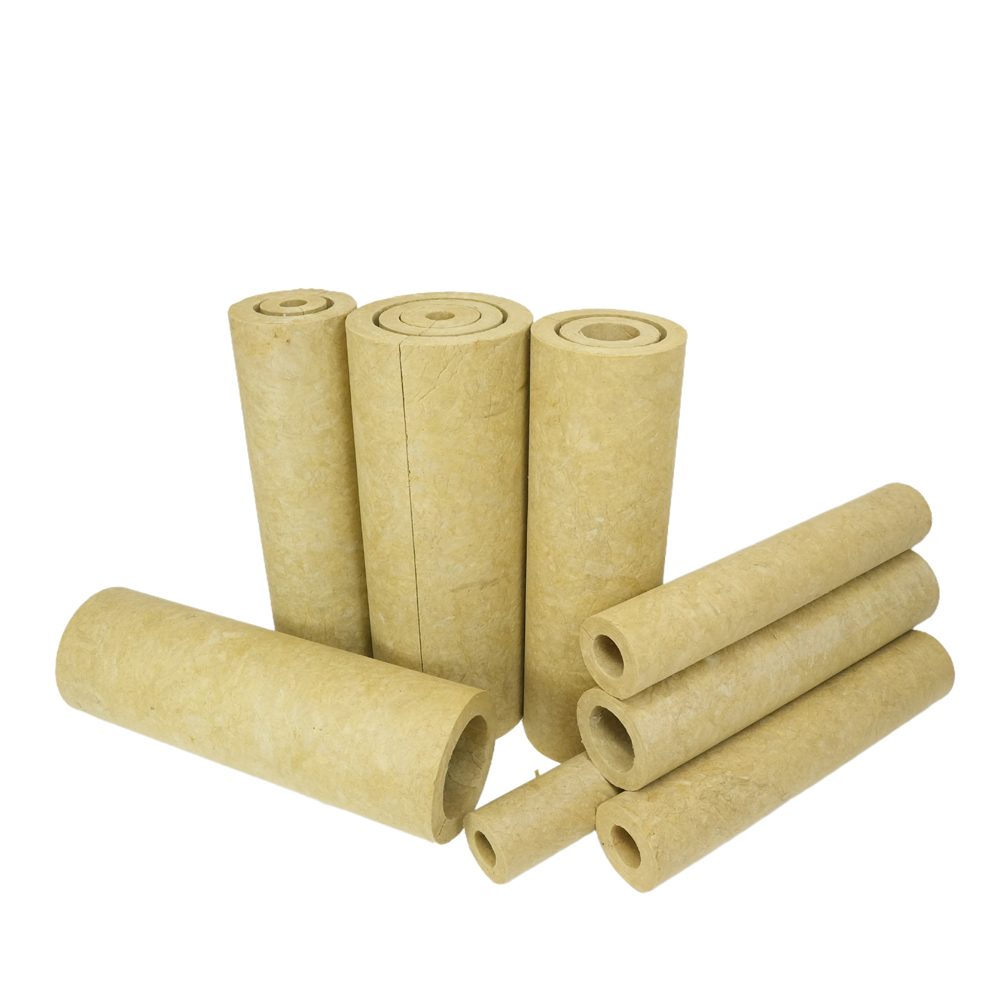

FANRYN Rock Wool Pipe - Non-combustible Class A1 Mineral Wool Pipe with 0.035 W/m·K Thermal Conductivity and -270°C to 700°C Temperature Resistance 2
Packaging
  • Standard export packaging: Plastic-wrapped bundles
  • Moisture-proof and stackable for safe transport and storage
  • Custom packaging available for large-volume orders
Frequently Asked Questions
Q: Can you produce non-standard sizes?
A: Yes. We offer made-to-order services for special diameters, thicknesses, or densities.
Q: Is the pipe suitable for outdoor use?
A: Yes, with proper cladding or weatherproof covering.
Q: How is the product packed for export?
A: Each pipe section is wrapped in plastic and bundled for safe shipping.
Q: What if the product arrives damaged?
A: Please contact us immediately with photos. We will evaluate and offer a solution — replacement or compensation.
