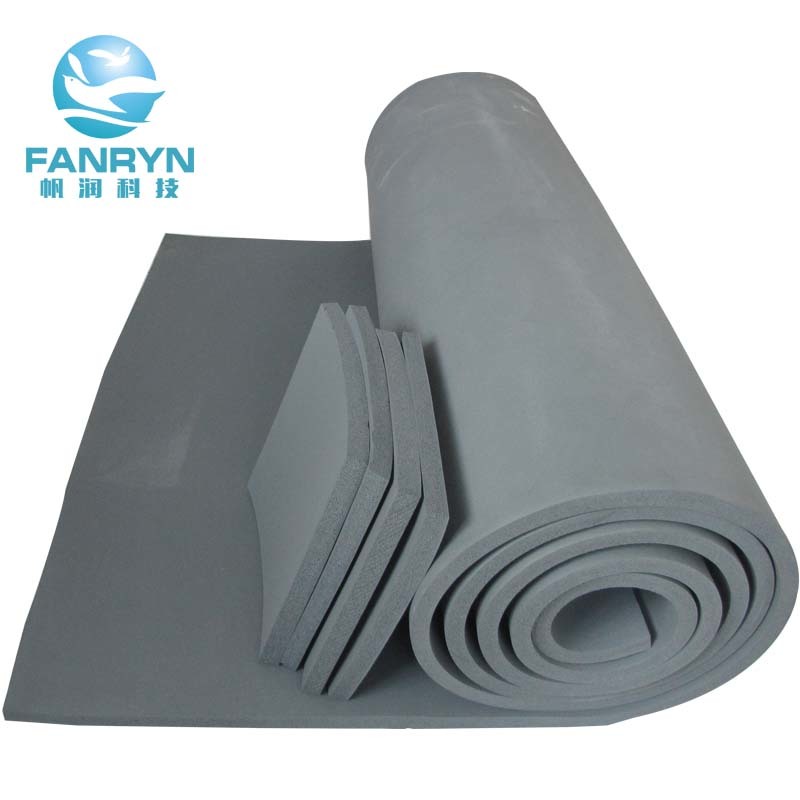

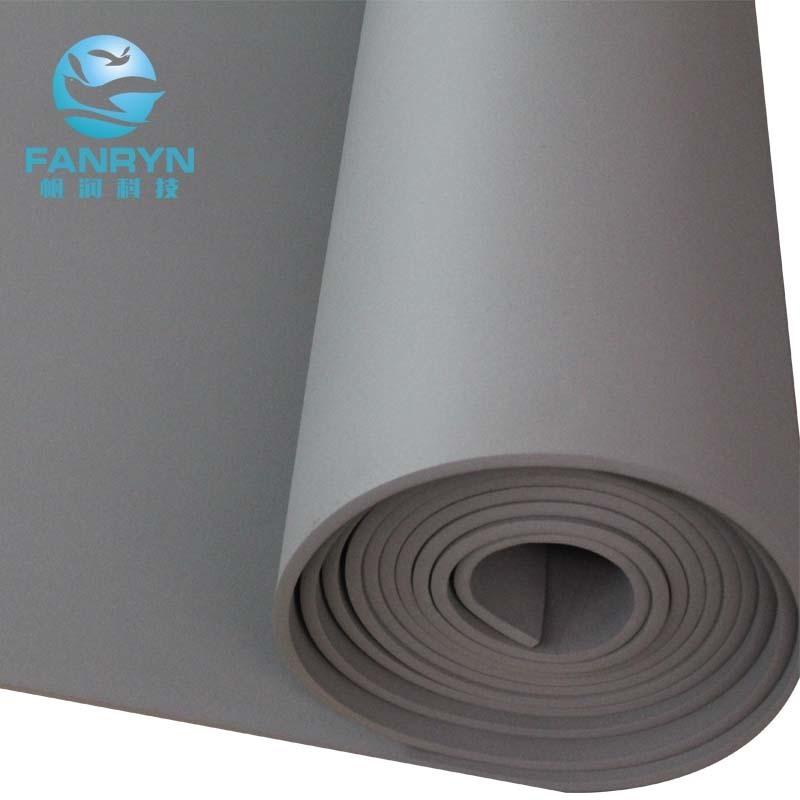

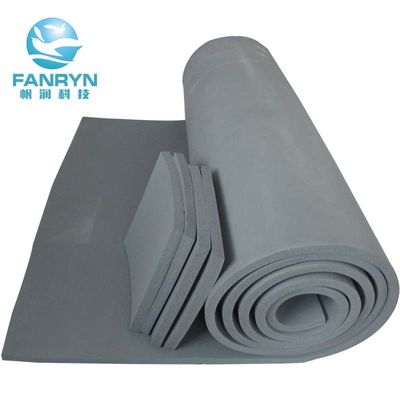

Product introduction of CLASS B0 RUBBER PLASTIC INSULATION SHEET
FANRYN CLASS B0 Rubber Plastic Insulation Sheet is a premium thermal insulation material offering exceptional performance. It matches the thermal conductivity of CLASS B1 products while delivering superior heat insulation, enhanced energy efficiency, excellent moisture resistance, and extended service life. The standard finish is charcoal grey.
Furthermore, FANRYN CLASS B0 insulation sheet features outstanding fire resistance due to specialized additives in its composition. Compliant with European standards, it has been widely exported to Southeast Asia, the Middle East, Australia, and other international markets.
Product Specifications And Technical Data of CLASS B0 RUBBER PLASTIC INSULATION SHEET
|
Thickness
|
10mm
|
15mm
|
20mm
|
25mm
|
30mm
|
|
m/piece
|
20m
|
20m
|
10m
|
10m
|
10m
|
|
Tolerance
|
+1.5
|
+1.5
|
+3.5
|
+4
|
+5
|
|
Item
|
Unit
|
Specification
|
Standard
|
|
Density
|
Kg/m3
|
40~90
|
GB/T 6343
|
|
Temperature
|
℃
|
-50~110
|
GB/T 17794
|
|
Oxy gen index
|
%
|
≥40
|
GB/T 2406
|
|
SDR
|
|
≤65
|
GB 8627-1999
|
|
Water vapor permeability
|
Factor
|
——
|
≥1.0×104
|
GB/T 17146-1997
|
|
|
coefficient
|
g/(m.s.pa)
|
≤1.96×10-11
|
-
|
|
Water absorption ratio in vacuum
|
%
|
≤10
|
GB/T 17794-2008
|
|
Dimension stability
105±3℃,7d
|
%
|
≤10
|
GB/T 8811
|
|
Crack resistance
|
N/cm
|
≥2.5
|
GB/T 10808
|
|
Compression resilience ratio
|
%
|
≥70
|
GB/T 6669
|
Product Application of CLASS B0 RUBBER PLASTIC INSULATION SHEET
Architecture and Air Conditioning: Workshop Insulation and Air Conditioning Unit Efficiency.
Industrial maintenance: Insulated cold/hot containers and pipes.
Noise control: Effective sound absorption system.
Niche markets: Key environments in the diving suits, sports fillers, food, electronics, pharmaceutical and automotive industries.
Product Advantage of CLASS B0 RUBBER PLASTIC INSULATION SHEET
Outstanding thermal efficiency: The extremely low thermal conductivity significantly saves energy.
Comprehensive safety and durability: It combines excellent fire resistance, vibration damping and moisture resistance (from closed-cell structure).
Superior application: High flexibility and clean appearance facilitate quick and professional installation.
Details:
Packing:
1. PE plastic bag
2. PE plastic bag +carton
Note: OEM is acceptable
If you are interested in our products,please { click here }to see all the products
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).
Q3: What is your lead time for one 40HC container order?
A3: Usual 10-15 work days after placing order.
Q4: What is your advantage on glass wool blanket?
A4: Our glass wool blanket can be freely cut in construction according the shape required.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
