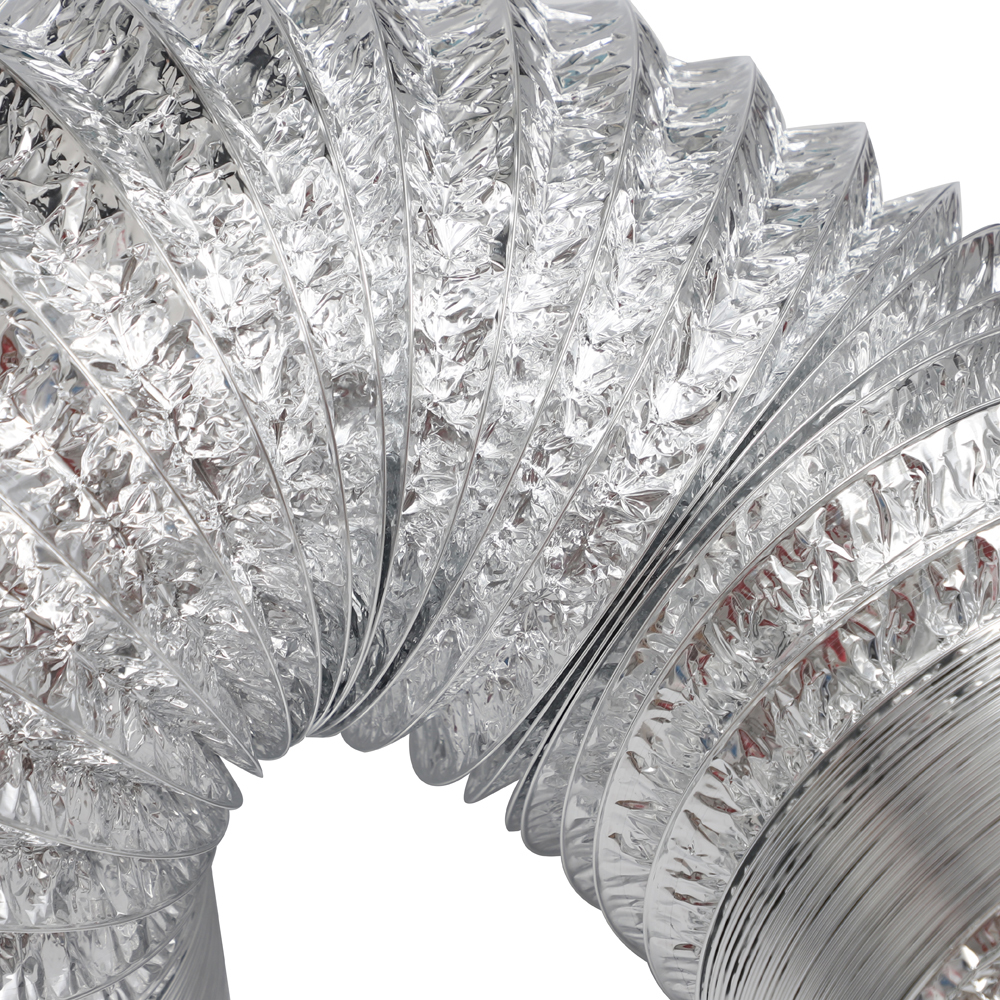

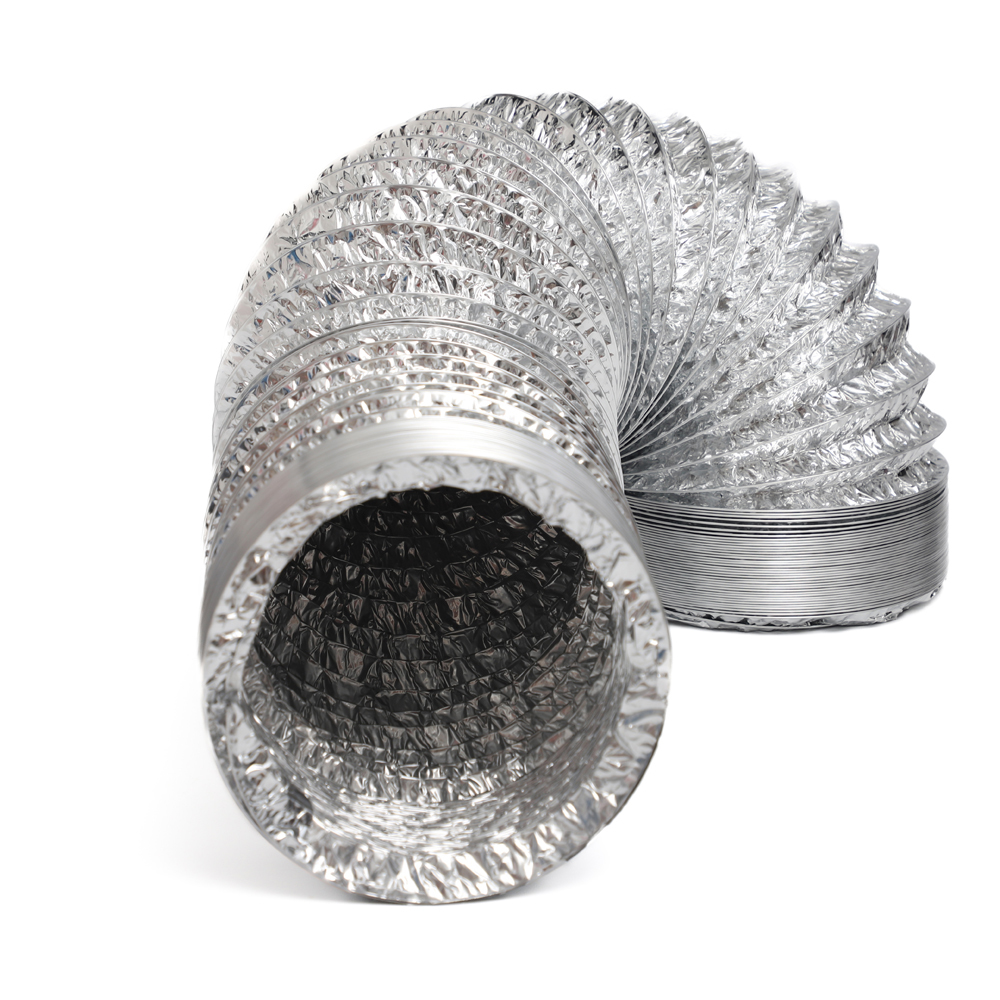

Product Introduction Of The Aluminum Flexible Duct
Our aluminum flexible duct is crafted from a robust combination of aluminum foil, PET layer, and steel wire reinforcement, offering exceptional resistance to corrosion and metal fatigue.
Highly flexible, the duct can be easily routed and connected even in hard-to-reach areas, making it an ideal alternative to rigid ducting systems where custom installation would be complex or cost-prohibitive.
The duct can be freely extended, compressed, and bent repeatedly without risk of leakage or deformation. It also demonstrates excellent resistance to dry rot under thermal aging, ensuring long-term performance stability as well as ease of shipment and on-site handling.
Product Parameter Of The Aluminum Flexible Duct
|
PROPERTIES
|
VALUE
|
|
DIAMETER RANGE
|
80 ~ 610mm
|
|
TEMPERATURE RANGE
|
-30 ~ +250 °C
|
|
VELOCITY OF AIR FLOW (MAX.)
|
30 m/s
|
|
WORKING PRESSURE
|
2500 Pa/3000 Pa
|
|
BENDING RADIUS
|
0.54*D
|
|
STANDARD LENGTH
|
5-10m
|
Product Technical Data Of The Aluminum Flexible Duct
|
Thickness of aluminum foil
|
7mic
|
|
Thickness of PET
|
12/15/18mic
|
|
Diameter of steel wire
|
0.6mm-1.5mm
|
|
Glue
|
Hot melt adhesive /polyurethane
|
|
Package
|
Plastic bag/Carton
|
|
Operating temperature range
|
-30oC~250oC
|
|
Max air velocity
|
30m/s
|
|
Max operating pressure
|
2500pa /3000pa
|
|
Melting point of hot melt adhesive
|
130oC~250oC
|
Parameters
|
Number of layers
|
Max operating temperature
|
Structure
|
|
Single layer
|
120oC
|
One layer aluminum foil + one layer PET film
|
|
Double layers
|
140oC
|
One layer PET film + two layers aluminum foil
|
|
Four layers
|
220oC
|
Two layers aluminum foil + two layers PET film
|
|
Six layers
|
250oC
|
Three layers aluminum foil+ three layers PET film
|
Aluminum & Fiberglass Cloth Composite Flexible Duct
Structure: alum. foil + PET + fiberglass cloth
Color : silver
Ideal for use in general purpose exhaust applications and ventilation of central air-con system.
Product Feature Of The Aluminum Flexible Duct
Crafted with a spring steel wire helix and laminated with aluminum-polyester composite film, this duct offers robust durability and flexibility. It maintains its shape securely during operation while minimizing wind resistance. In high-temperature environments or in the event of a fire, it emits no toxic gases, ensuring enhanced safety. It is ideally suited for general exhaust applications and central air-conditioning ventilation systems.
Product Application Of The Aluminum Flexible Duct
Suitable for a wide range of air conditioning and ventilation systems, including:
-Hospitals and hotels
-Commercial and industrial buildings
-Residential ventilation systems
-Central air-conditioning supply and exhaust systems
Production Details Of The Aluminum Flexible Duct
Aluminum flexible duct products can be divided in Aluminum & Fiberglass Cloth Composite Flexible Duct/Aluminum & Silicone Fiberglass Cloth Composite Flexible Duct & Aluminum & PVC Composite Flexible Duct.

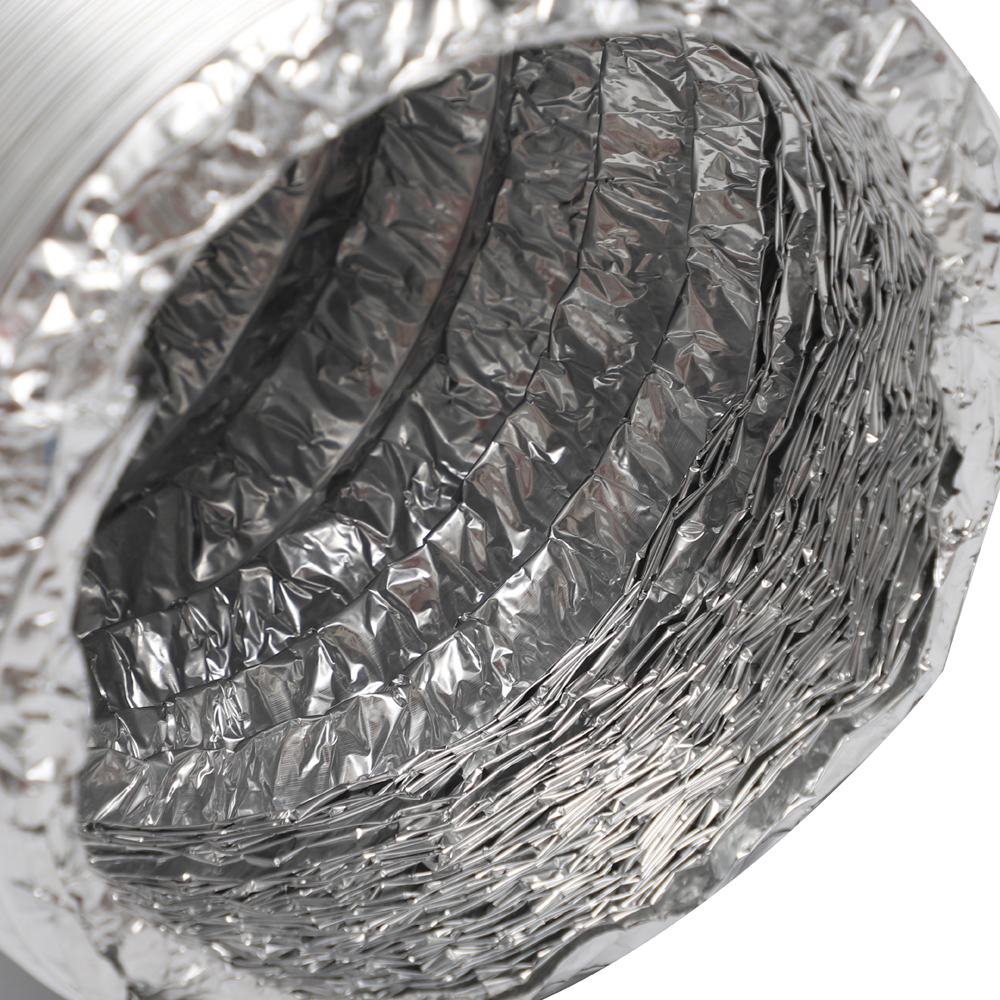

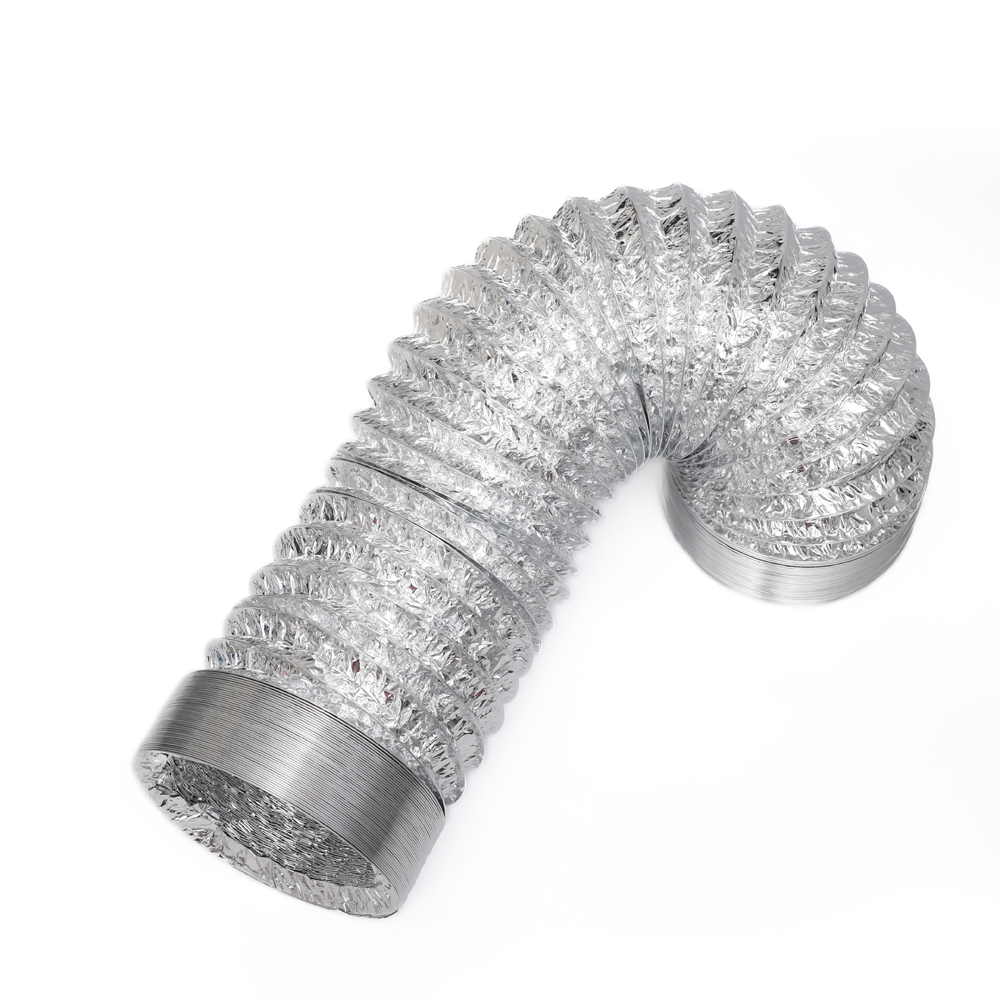

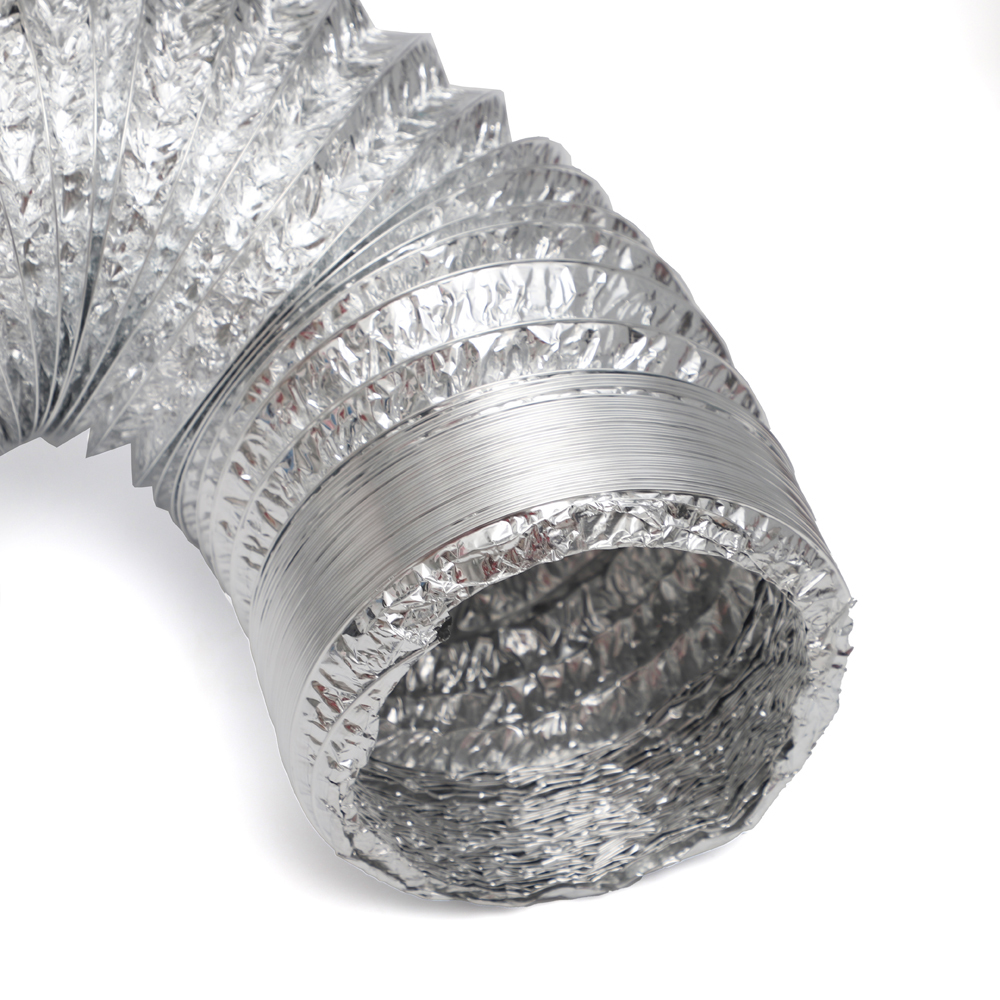

Details Of The Aluminum Flexible Duct
Packing Of The Aluminum Flexible Duct
Our service
-One year warranty for all products
-Necessary technical support
-Delivery quality products with excellent service on time
-Supply one stop solution on insulation and ventilation products
-Supply high level QC service
